Network Concepts & Descriptives II

Social Network Analysis

Termeh Shafie

Centrality

Definition

A measure of centrality is an index that assigns a numeric values to the nodes of the network. The higher the value, the more central the node.

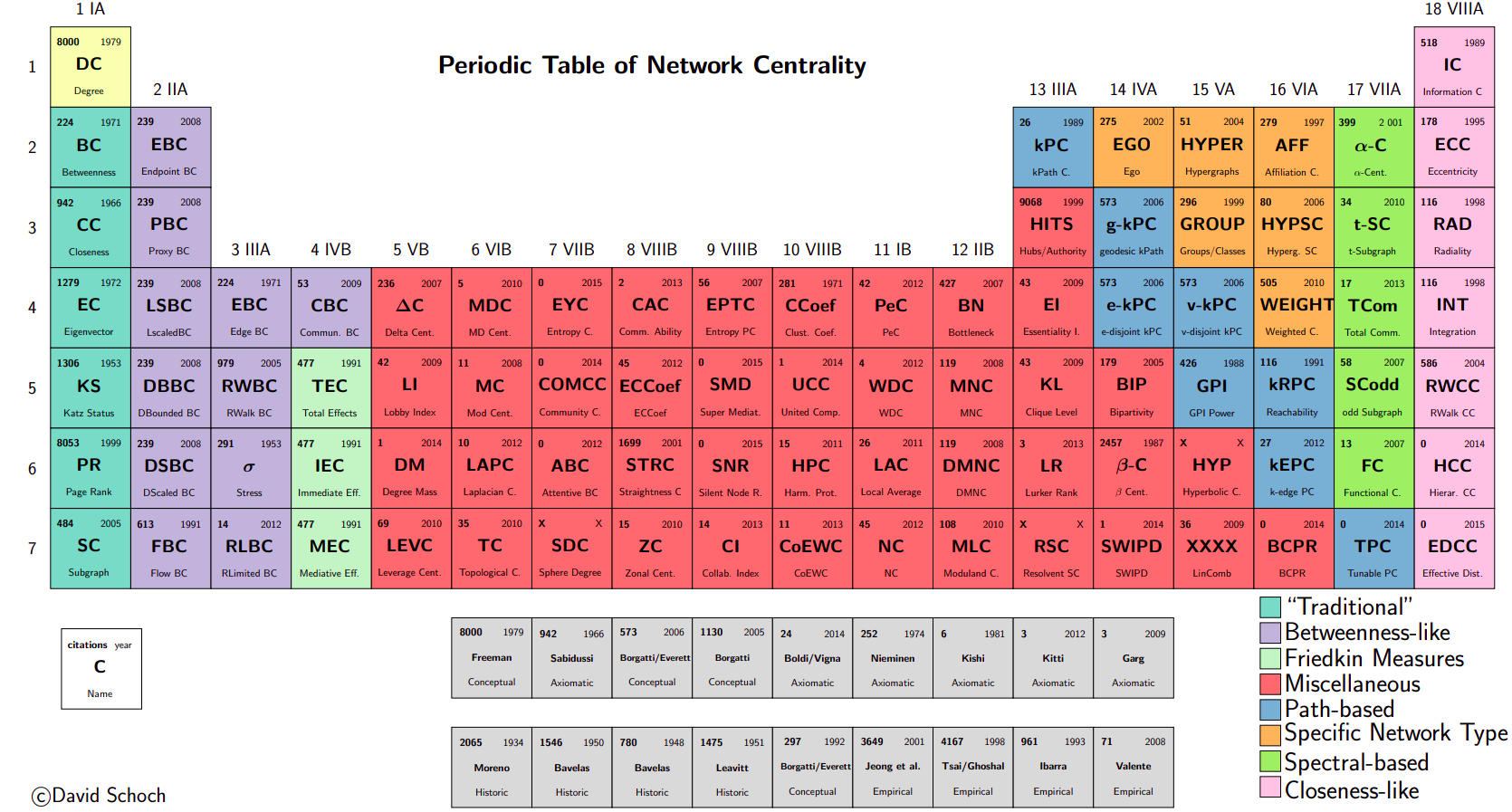

“Being central” is a very ambiguous term hence there exists a large variety of indices that assess centrality with very different structural properties.

Standard Indices

Degree

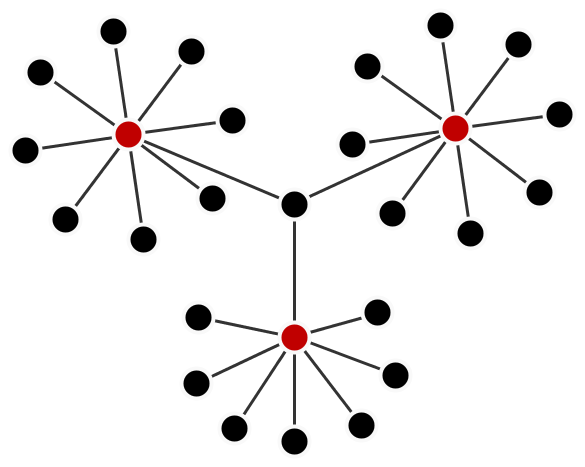

Number of direct neighbors (“popularity”)

Closeness
Reciprocal of the sum of the length of the shortest paths

Betweenness
Number of shortest paths that pass through a node (“brokerage”)

Eigenvector
Being central means being connected to other central nodes

PageRank
Similar to eigenvector, just for directed networks

Degree

undirected networks

• direct contacts of an actor
• interpreted as opportunity to influence an be influenced directly
• friendship network ⇒ popularity

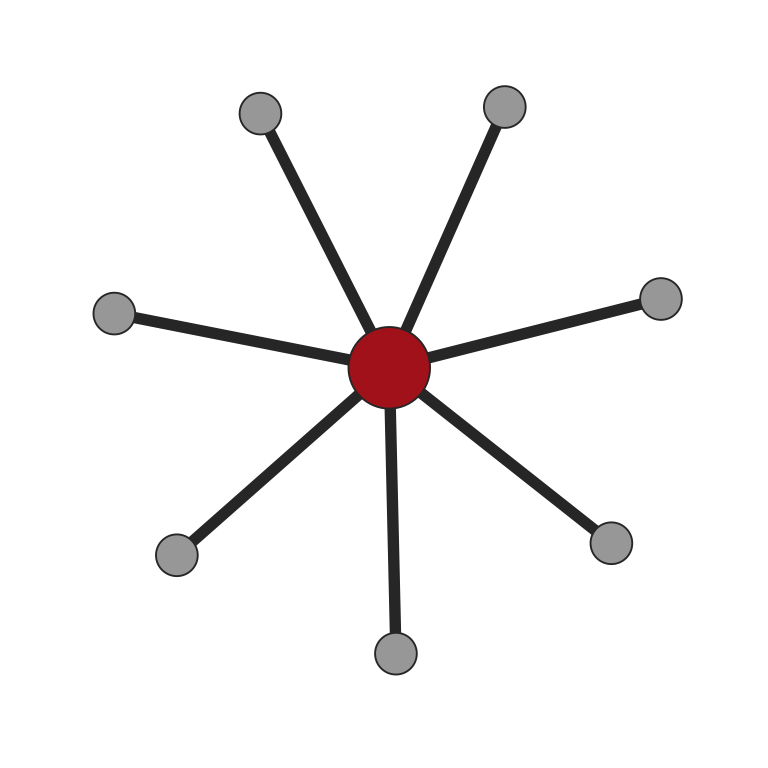

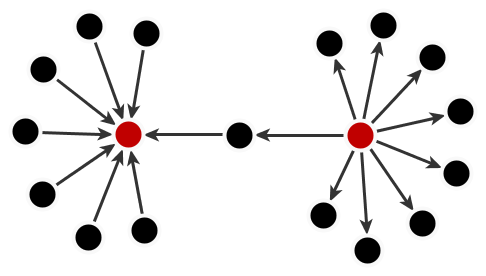

directed networks

• in-degree: popularity, prestige, trustworthiness

• out-degree: activity

Degree

can easily be calculated using row/column sums of adjacency matrix

Closeness

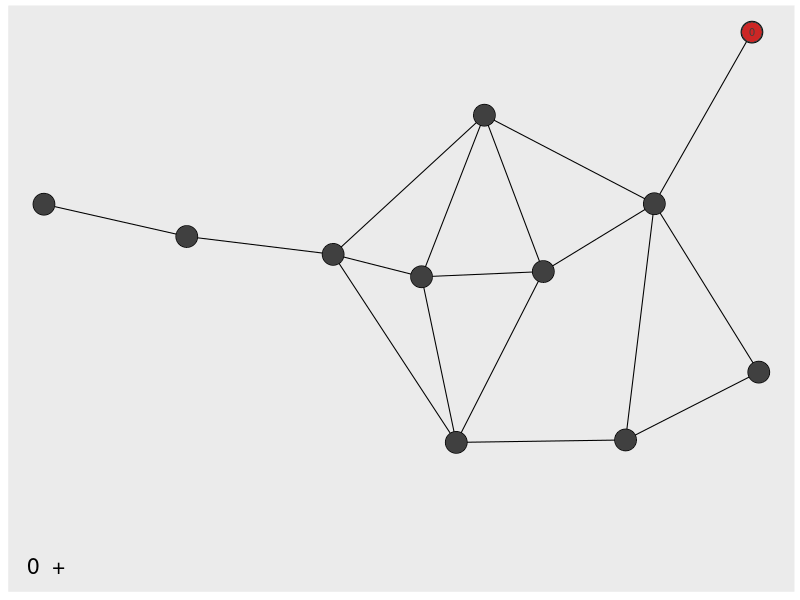

how close a node is to all other nodes?

• sum of shortest paths between the node and all other nodes
  (sum of geodesic distances to all other nodes)
• is an inverse measure of centrality
  high values: short path to other nodes
• directed networks
  • closeness-in
  • closeness-out

Closeness

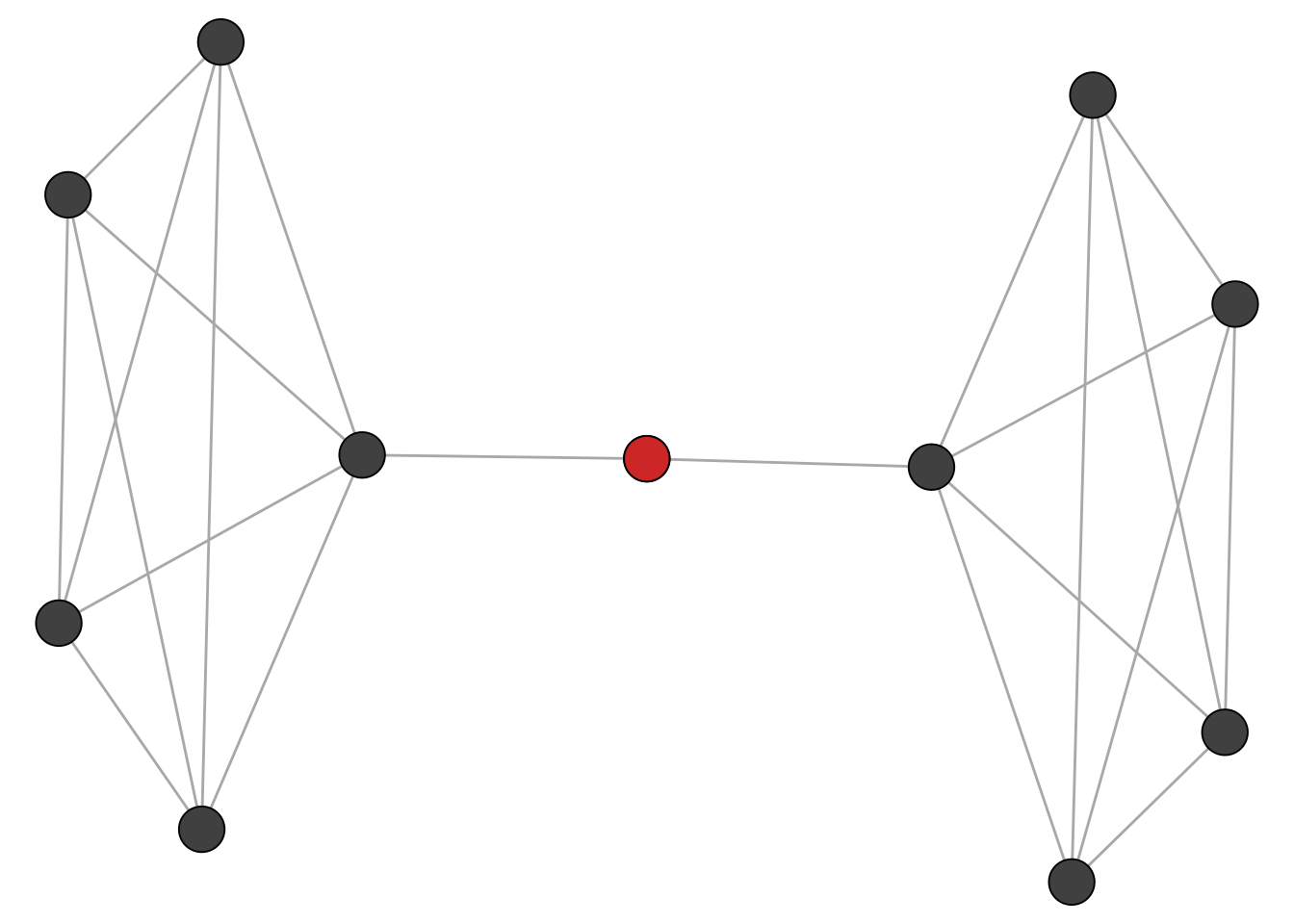

Betweenness

how often a node lies along the shortest path between two other nodes?

index of potential for

• gatekeeping
• brokering
• controlling the flow
• connecting otherwise separate parts of the network

access to diversity of what flows

• potential for synthesizing
• directed networks: no issues, one score (no separate in and out scores)

Betweenness

Eigenvector

iterative version of degree centrality
node’s centrality is proportional to sum of centralities of those it has ties to

• node has high score if connected to nodes that are well connected
• better to be connected to 20 well connected individuals than to 50 people connected to no one else
• tends to identify centres of large well connected groups
• directed networks: does not work

Eigenvector

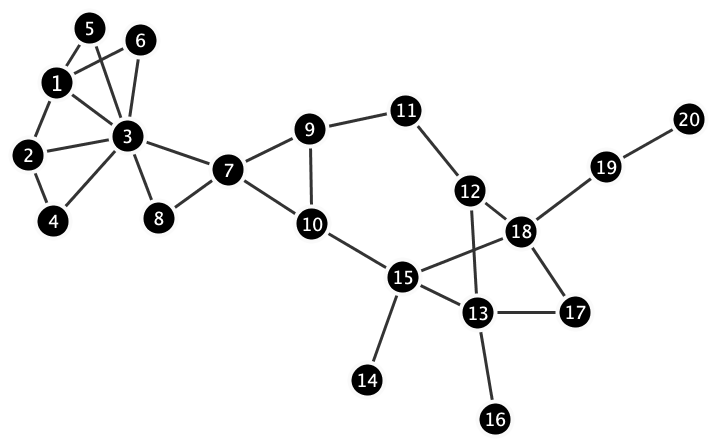

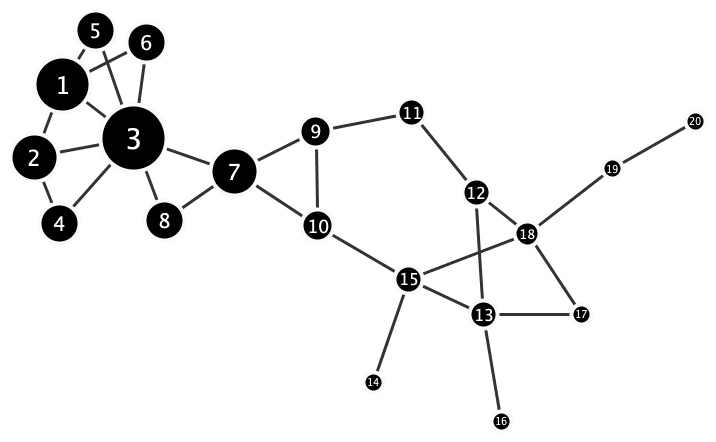

which node has the highest eigenvector centrality?

Eigenvector

which node has the highest eigenvector centrality?

PageRank

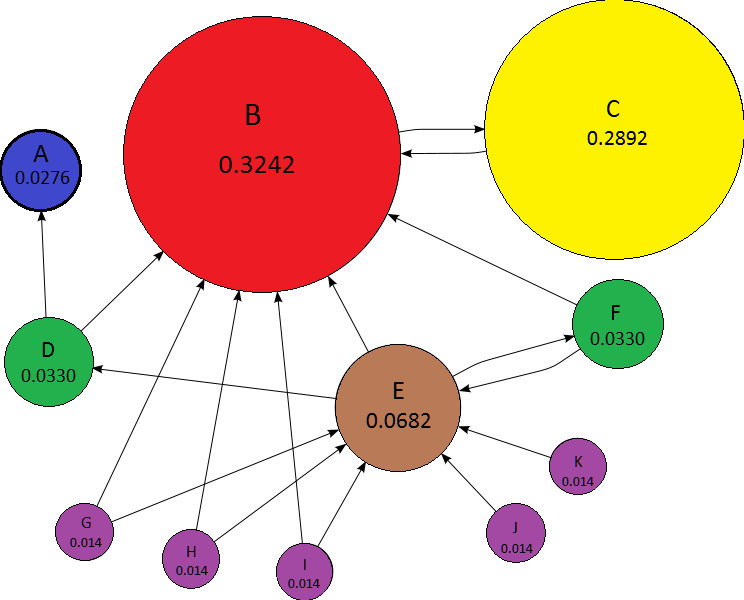

PageRank works by counting the number and quality of links to a page to determine a rough estimate of how important the website is. The underlying assumption is that more important websites are likely to receive more links from other websites.

PageRank

PageRank works by counting the number and quality of links to a page to determine a rough estimate of how important the website is. The underlying assumption is that more important websites are likely to receive more links from other websites.

Random surfer
A person following links at random PageRank is related to the probability of a random surfer ending up at a certain page.

Damping factor
At each step, the random surfer follows a link with probability \(d\) or jumps to an unconnected page with probability \(1-d\).
Empirically \(d\sim0.85\)

Toy example I

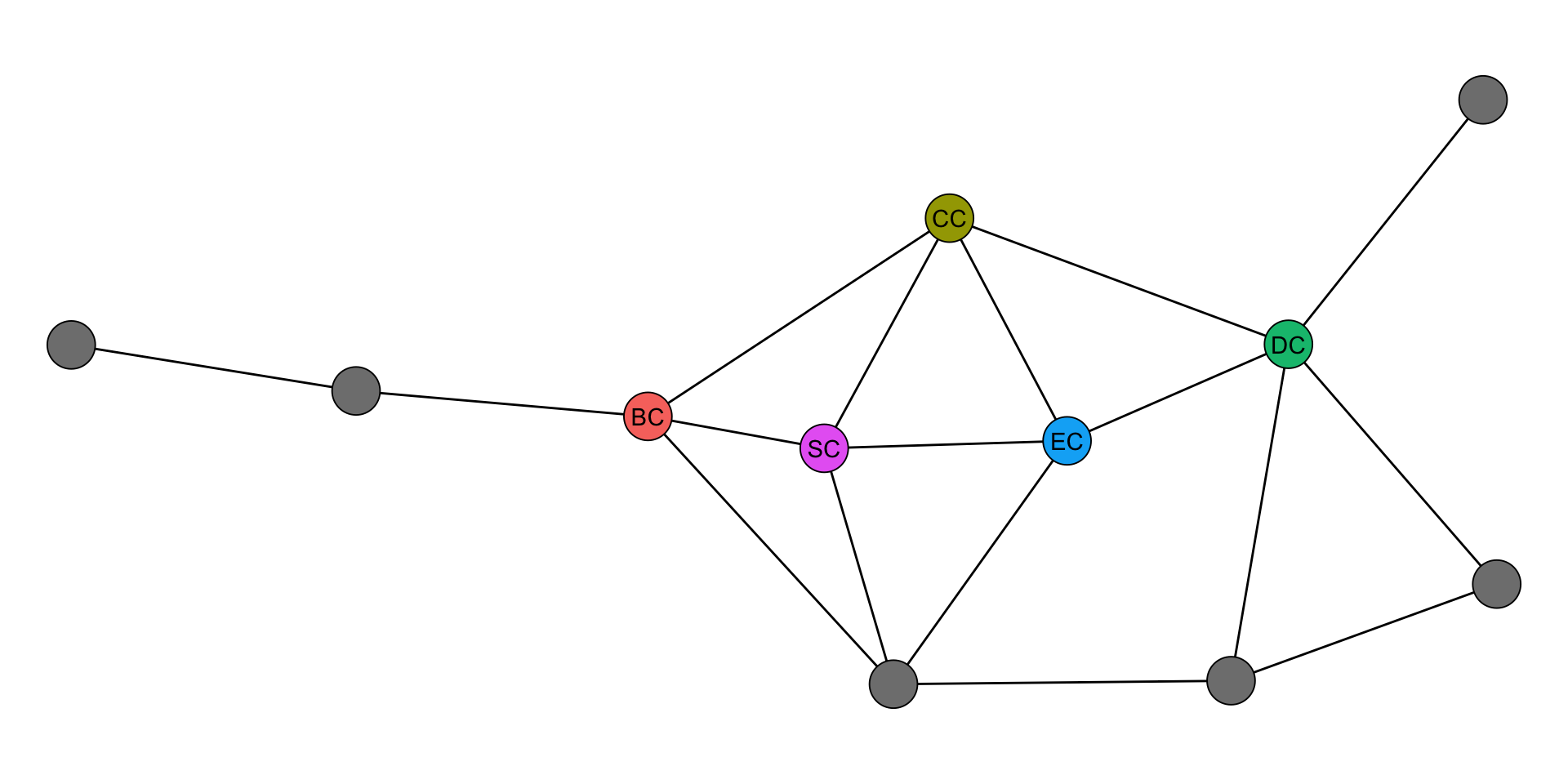

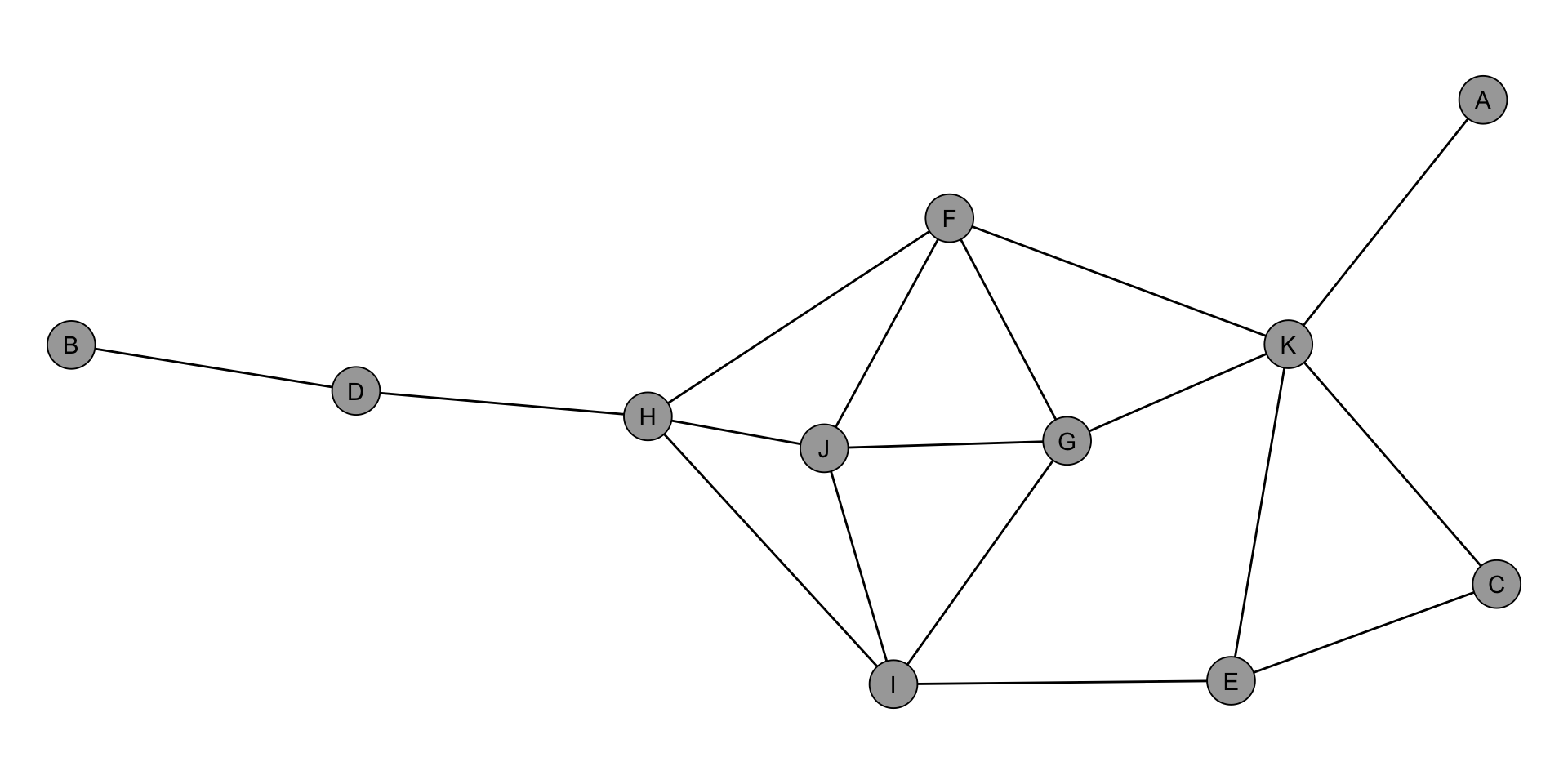

data("dbces11")

Toy example I

data("dbces11")

Implemented indices

igraph contains the following 10 indices:

• degree (degree())
• weighted degree (strength())
• betweenness (betweenness())
• closeness (closeness())
• eigenvector (eigen_centrality())
• alpha centrality (alpha_centrality())
• power centrality (power_centrality())
• PageRank (page_rank())
• eccentricity (eccentricity())
• hubs and authorities (authority_score() and hub_score())
• subgraph centrality (subgraph_centrality())

Indices in the sna package

The sna package implements roughly the same indices but adds:

• flow betweenness (flowbet())
• load centrality (loadcent())
• Gil-Schmidt Power Index (gilschmidt())
• information centrality (infocent())
• stress centrality (stresscent())

Centrality and Social Capital

In the context of efficiency, brokerage and social capital
two important and interrelated network theories:

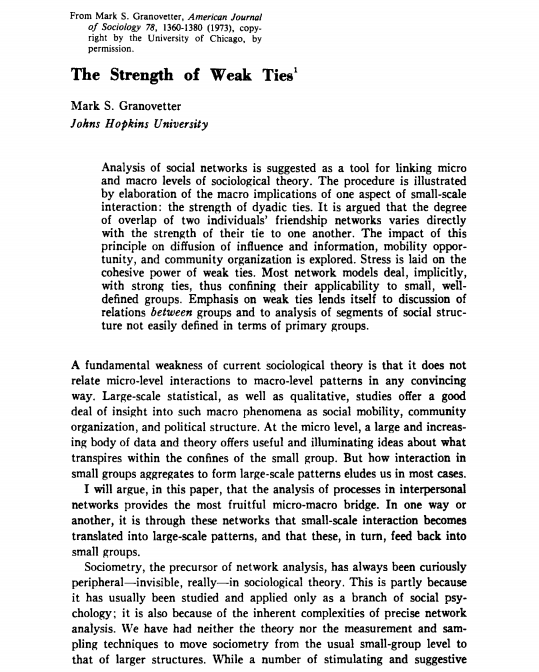

The Strength of Weak Ties

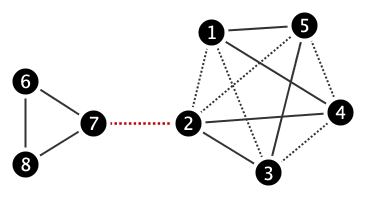

Actors connected via strong ties are more likely in same social environment

The Strength of Weak Ties

Actors connected via strong ties are more likely in same social environment

connected to transitivity

The Strength of Weak Ties

• redundant information flows through the strong ties
• novel information flows through the weak ones
• bridging ties unlikely strong
• those with many weak ties have more social capital

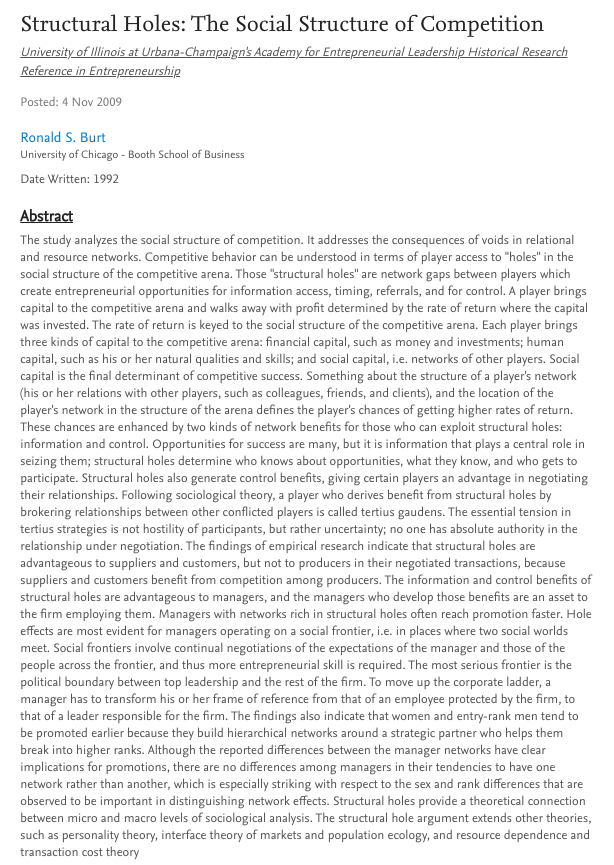

Structural Holes

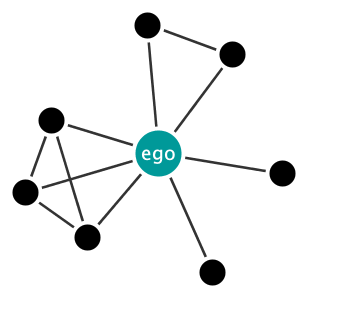

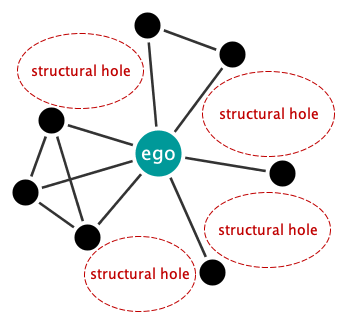

is concerned with ego networks:
networks that consist of a focal actor (the ego)
and the other actors directly connected to the ego (the alters)  whilst also including the ties among the alters

the gap arising with an absent tie between two neighbors of an actor

Structural Holes

More structural holes

\(\implies\) more opportunities to gain novel information
\(\implies\) more social capital

Can be quantified by betweenness centrality for ego networks

Cohesive groups

Definition(s)

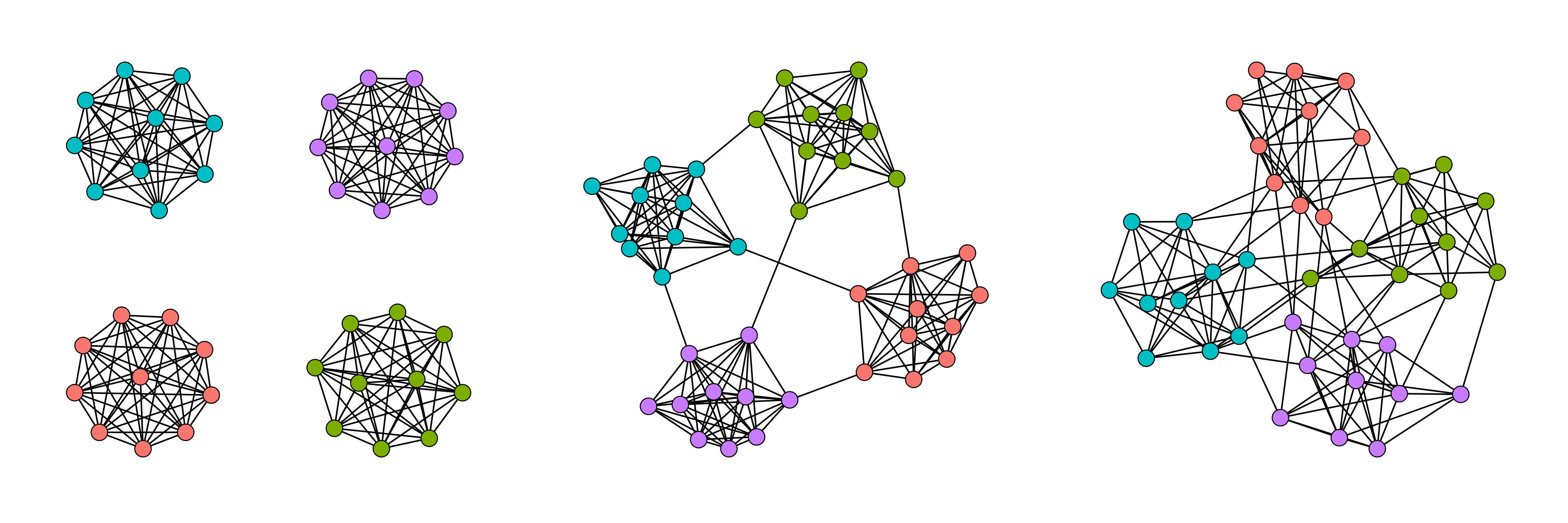

Cohesive subgroups are subsets of actors among whom there are relatively strong, direct, intense, frequent, or positive ties.

Methods that formalize the intuitive and theoretical notion of social group using social network properties

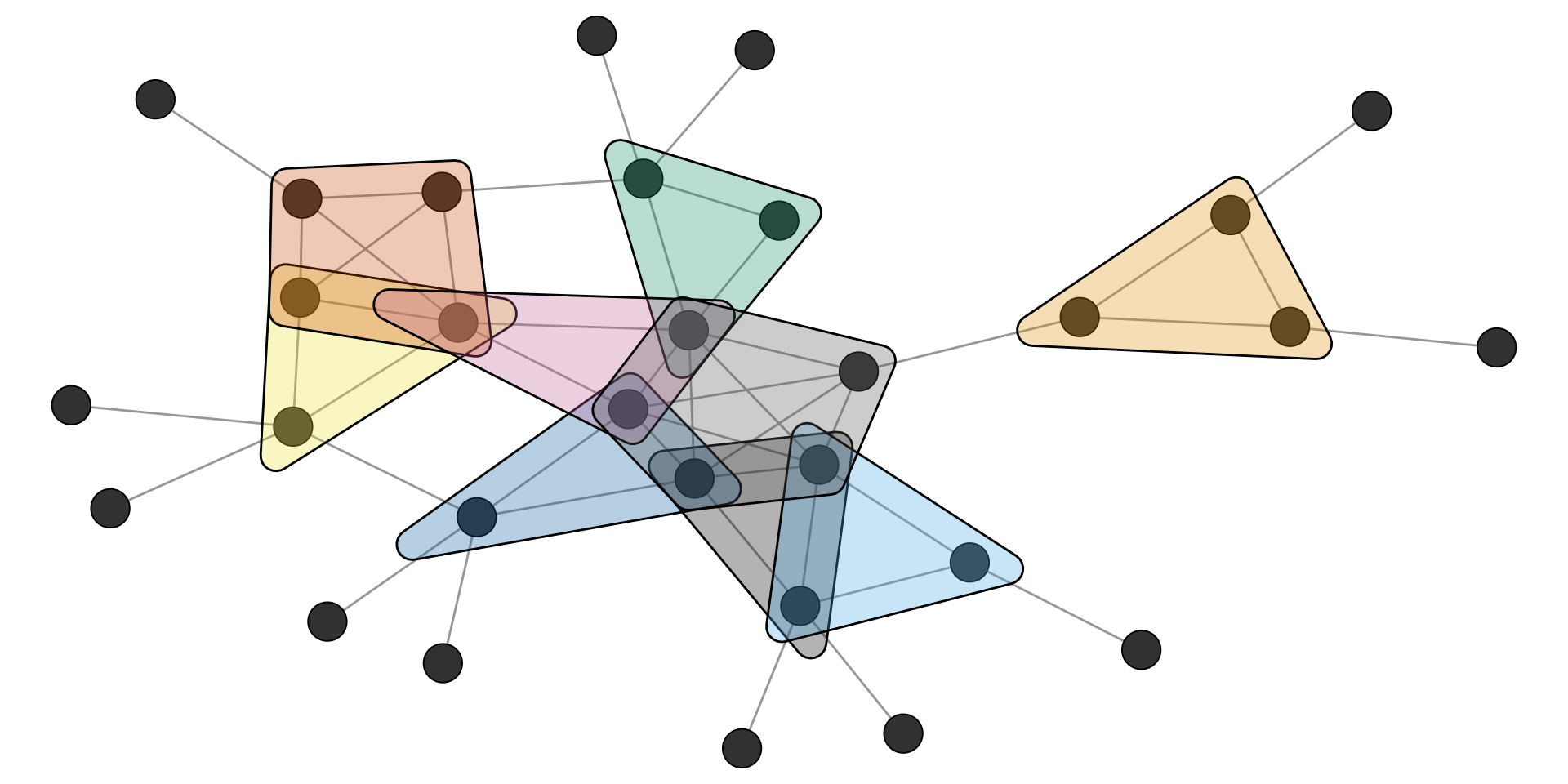

Cliques

A clique in a network is a set of nodes that form a complete subnetwork within a network (called a complete subgraph).

A maximal clique is a clique that cannot be extended to a bigger clique by addding more nodes to it.

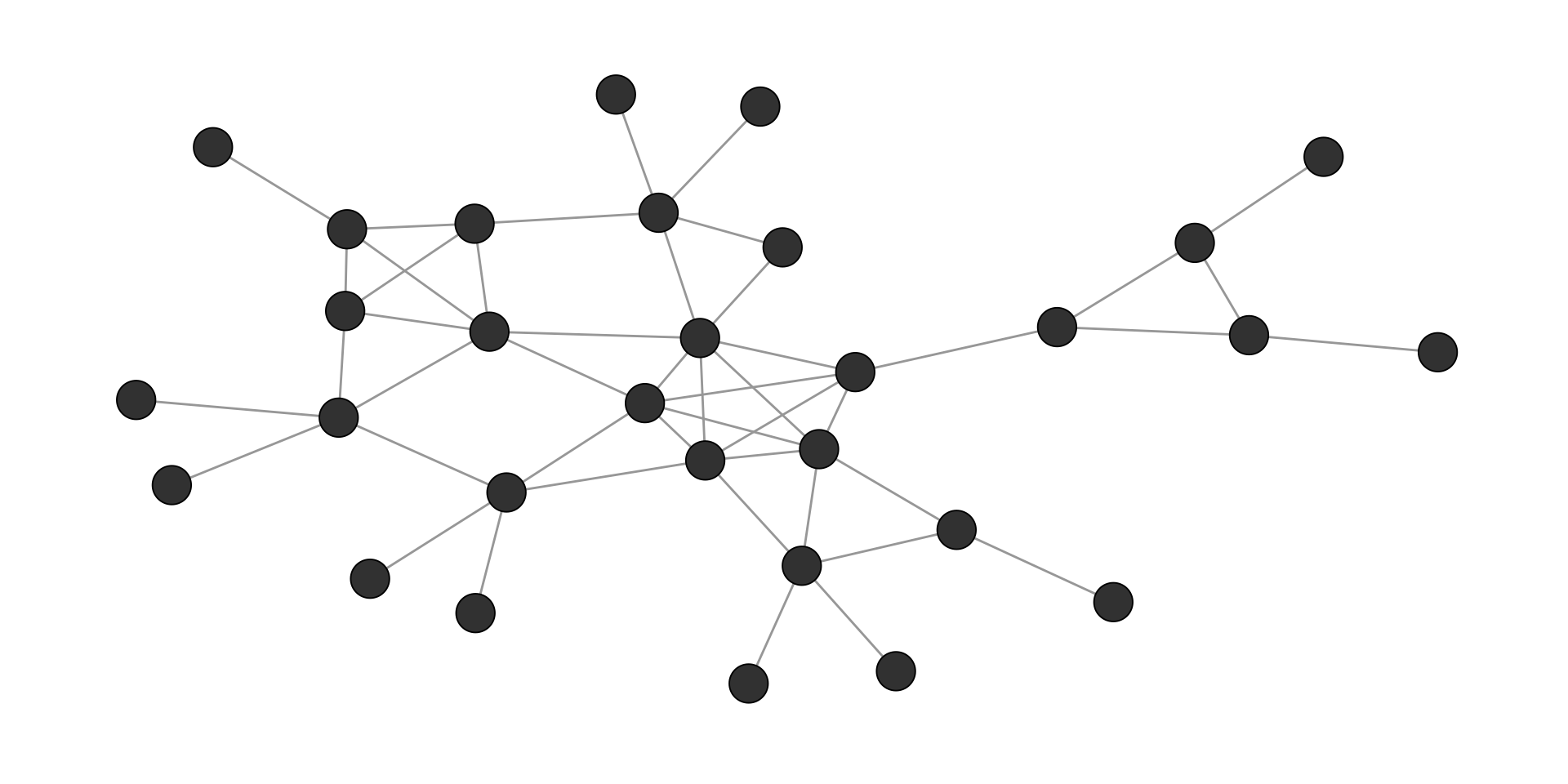

data("clique_graph")

Cliques

Maximal cliques can be calculated with max_cliques()

# only return cliques with three or more nodes
cl <- max_cliques(clique_graph,min = 3)
cl
#> [[1]]
#> + 3/30 vertices, from 0193e05:
#> [1]  9 17 18
#>
#> [[2]]
#> + 3/30 vertices, from 0193e05:
#> [1] 7 4 5
#>
#> [[3]]
#> + 3/30 vertices, from 0193e05:
#> [1] 7 4 8
#>
#> [[4]]
#> + 3/30 vertices, from 0193e05:
#> [1] 10  2 11
#>
#> [[5]]
#> + 3/30 vertices, from 0193e05:
#> [1] 16 12 15
#>
#> [[6]]
#> + 3/30 vertices, from 0193e05:
#> [1] 6 1 5
#>
#> [[7]]
#> + 4/30 vertices, from 0193e05:
#> [1] 12 13 15 14
#>
#> [[8]]
#> + 3/30 vertices, from 0193e05:
#> [1] 12  2  1
#>
#> [[9]]
#> + 5/30 vertices, from 0193e05:
#> [1] 1 2 5 4 3

Cliques in

k-core decomposition

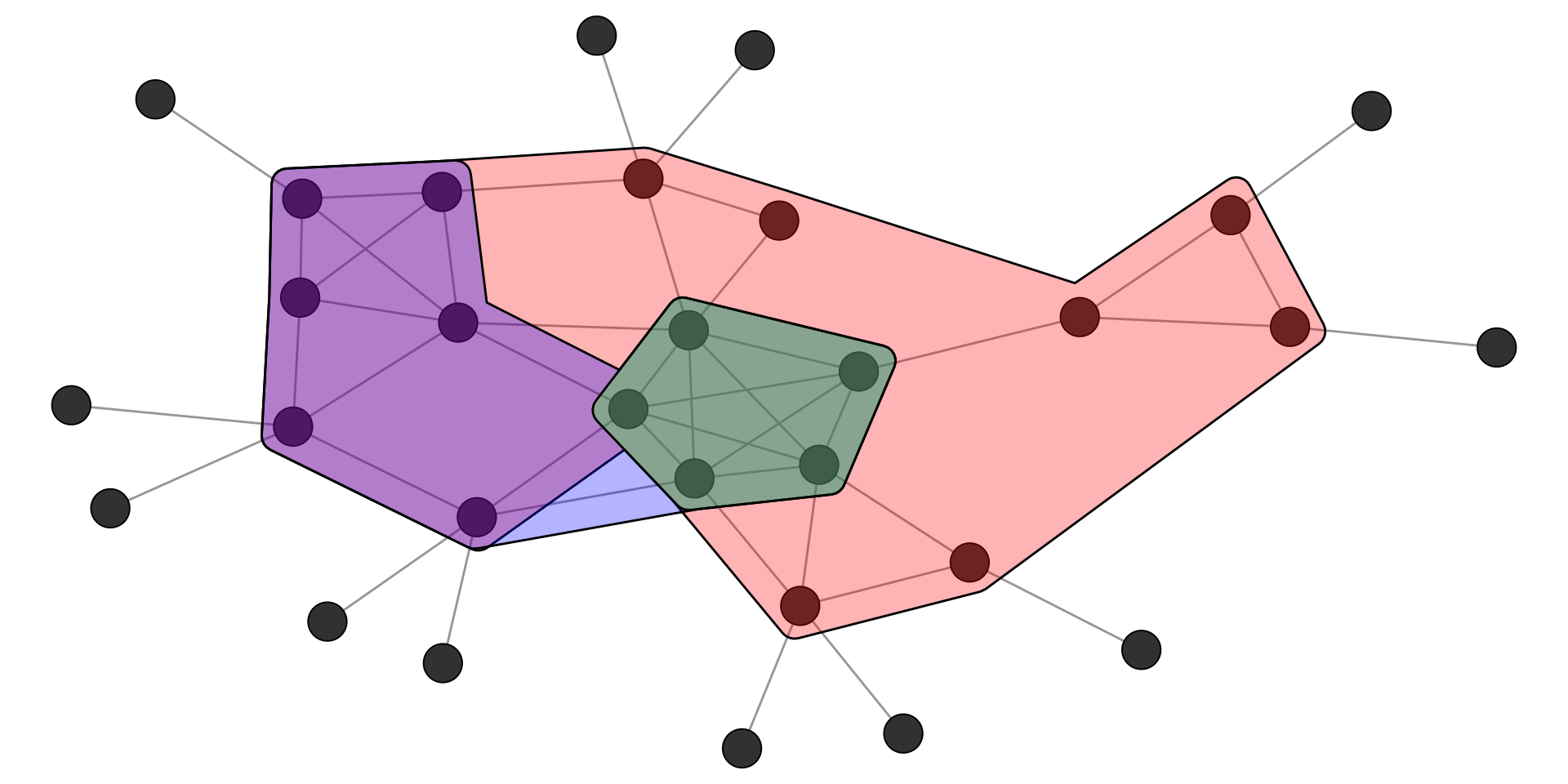

A k-core is a subgraph in which every node has at least k neighbors within the subgraph. A k-core is thus a relaxed version of a clique.

kcore <- coreness(clique_graph)
kcore
#>  [1] 4 4 4 4 4 3 2 2 2 2 2 3 3 3 3 3 2 2 1 1 1 1 1 1 1 1 1 1 1 1

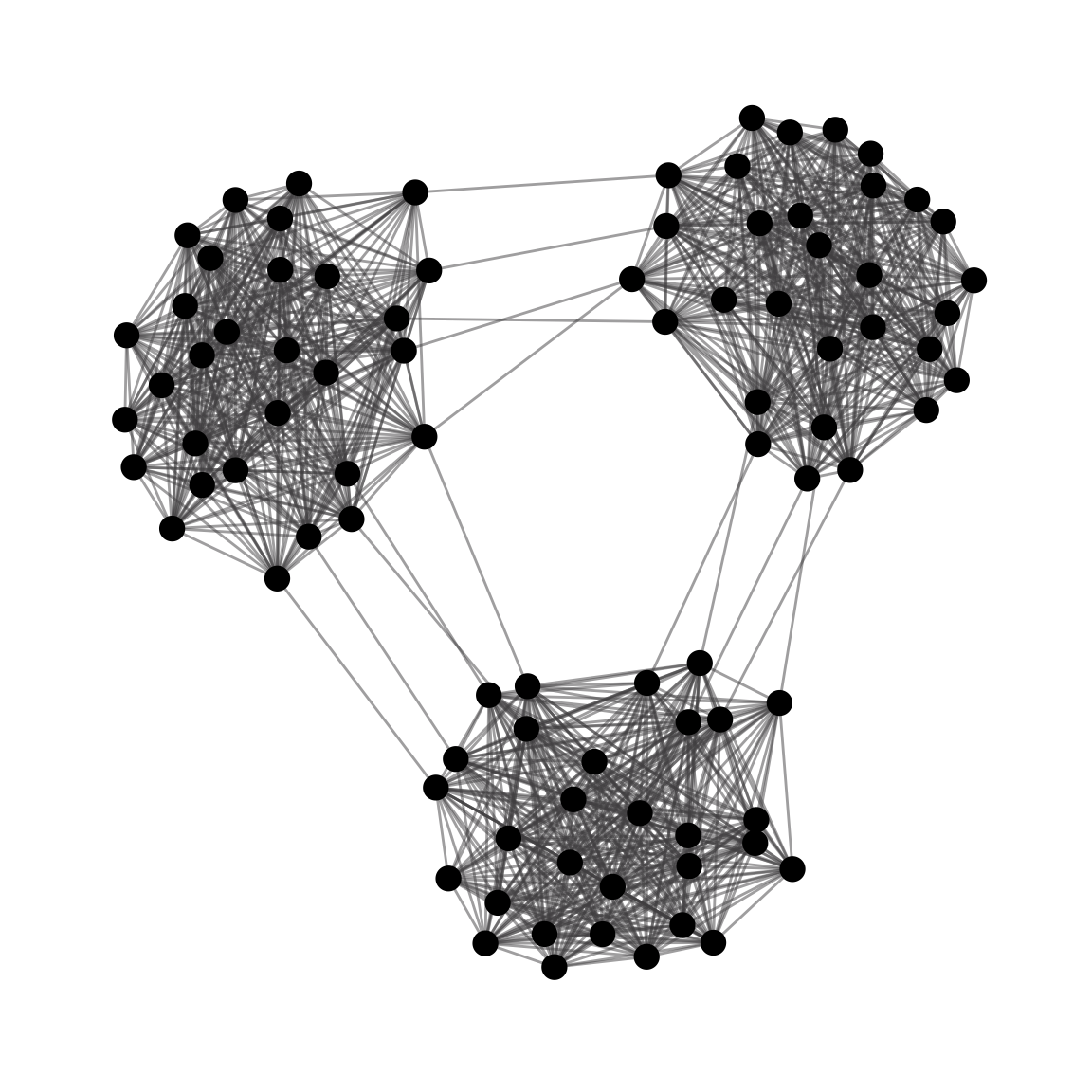

Clustering/Community detection

Minimum-cut method
cut graph into partitions which minimizes some metric

Hierarchical clustering
Agglomerative/Divisive methods to build a hierarchy of clusters
based on node similarity

Modularity Maximization
Modularity is defined as the fraction of edges that fall within given groups minus the expected fraction if edges were random

Statistical inference
stochastic blockmodeling based on generative models

Min Cut clustering

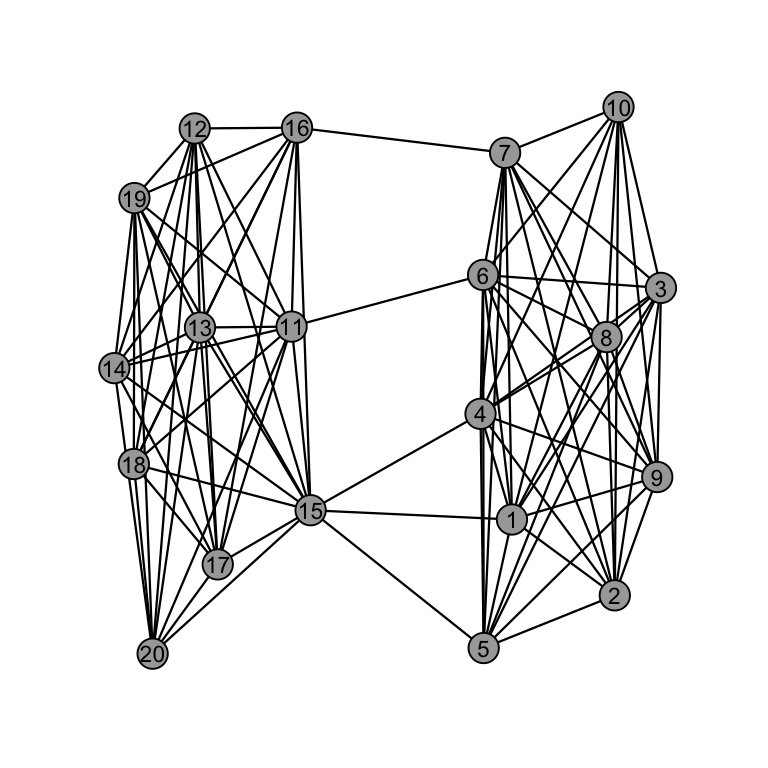

g <- sample_islands(2,10,0.9,5)
g <- simplify(g)

min_cut(g,value.only = FALSE)
#> $value
#> [1] 5
#>
#> $cut
#> + 5/92 edges from 89bbe6f (vertex names):
#> [1] 1--15 4--15 5--15 6--11 7--16
#>
#> $partition1
#> + 10/20 vertices, named, from 89bbe6f:
#>  [1] 15 20 16 19 12 11 17 13 18 14
#>
#> $partition2
#> + 10/20 vertices, named, from 89bbe6f:
#>  [1] 1  2  3  4  5  6  7  8  9  10

Really only works in very obvious cases.

Hierarchical clustering

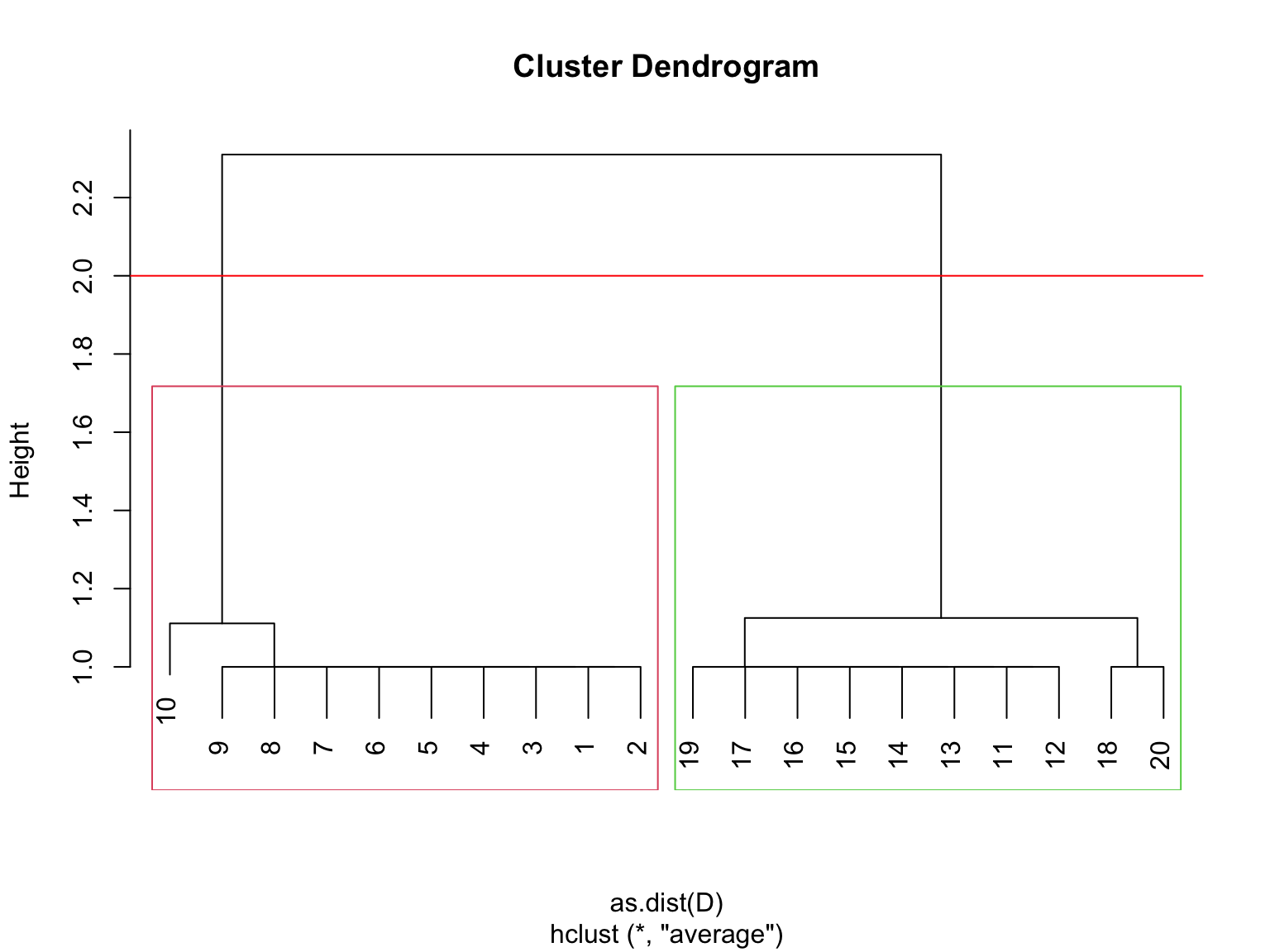

D <- distances(g)
hclust_avg <- hclust(as.dist(D), method = "average")
cut_avg <- cutree(hclust_avg, k = 2)

plot(hclust_avg)
rect.hclust(hclust_avg , k = 2, border = 2:6)
abline(h = 2, col = 'red')

Clustering with igraph

• There is no agreed upon best method
• Modularity maximization is still widely considered “state-of-the-art”
• Generative models are, however, a strong contender
  (not implemented in R yet)

ls("package:igraph",pattern = "cluster_")
#>  [1] "cluster_edge_betweenness"  "cluster_fast_greedy"
#>  [3] "cluster_fluid_communities" "cluster_infomap"
#>  [5] "cluster_label_prop"        "cluster_leading_eigen"
#>  [7] "cluster_leiden"            "cluster_louvain"
#>  [9] "cluster_optimal"           "cluster_spinglass"
#> [11] "cluster_walktrap"

Clustering workflow

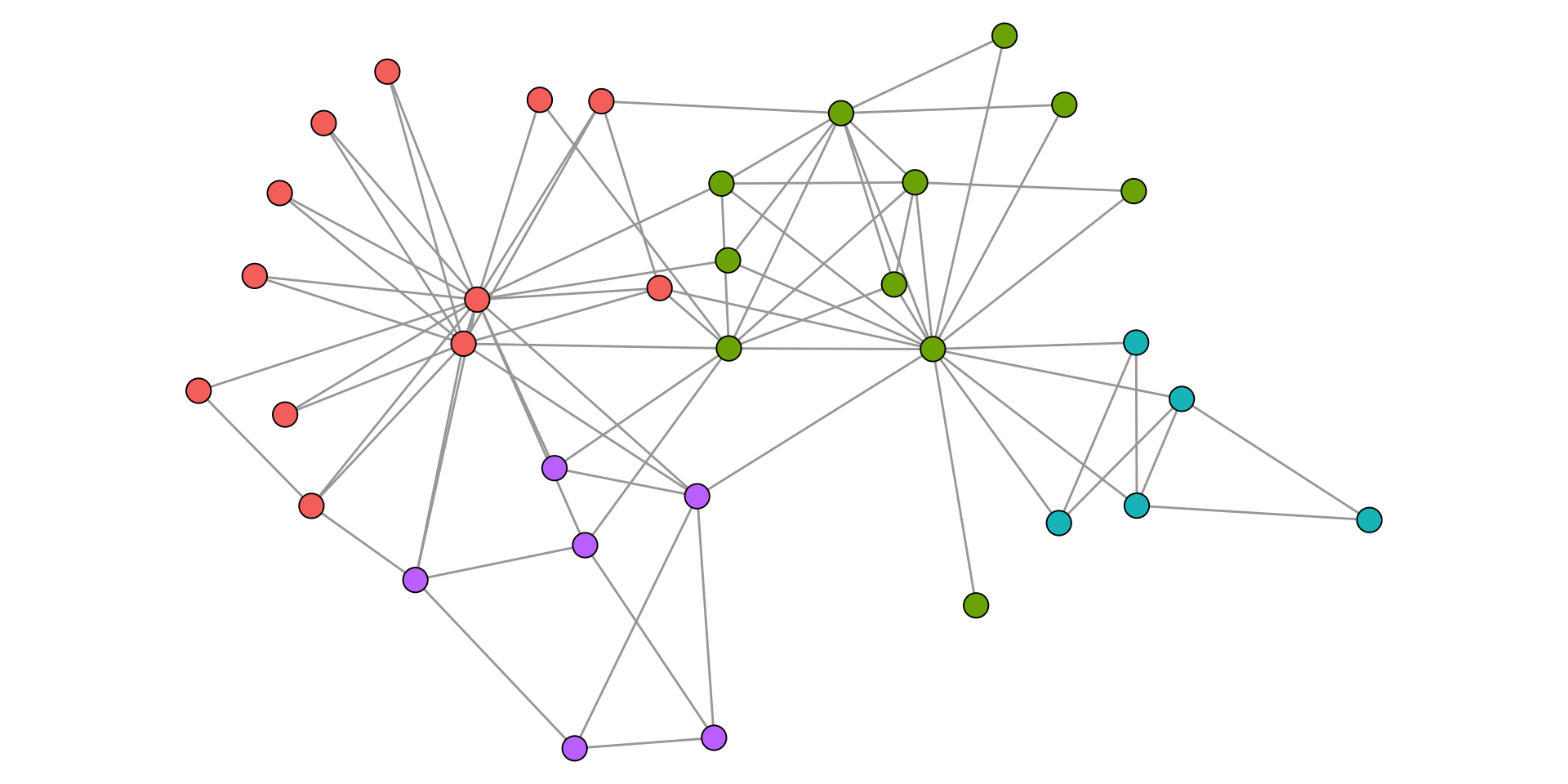

data("karate")

Clustering workflow

# compute clustering
clu <- cluster_louvain(karate)

# cluster membership vector
mem <- membership(clu)
mem
#>  [1] 1 1 1 1 2 2 2 1 3 1 2 1 1 1 3 3 2 1 3 1 3 1 3 4 4 4 3 4 4 3 3 4 3 3

# clusters as list
com <- communities(clu)
com
#> $`1`
#>  [1]  1  2  3  4  8 10 12 13 14 18 20 22
#>
#> $`2`
#> [1]  5  6  7 11 17
#>
#> $`3`
#>  [1]  9 15 16 19 21 23 27 30 31 33 34
#>
#> $`4`
#> [1] 24 25 26 28 29 32

Clustering workflow

imc <- cluster_infomap(karate)
lec <- cluster_leading_eigen(karate)
loc <- cluster_louvain(karate)
sgc <- cluster_spinglass(karate)
wtc <- cluster_walktrap(karate)

scores <- c(infomap = modularity(karate,membership(imc)),
            eigen = modularity(karate,membership(lec)),
            louvain = modularity(karate,membership(loc)),
            spinglass = modularity(karate,membership(sgc)),
            walk = modularity(karate,membership(wtc)))

scores
#>   infomap     eigen   louvain spinglass      walk
#> 0.4020381 0.3934089 0.4197896 0.4197896 0.3532216

Cluster workflow

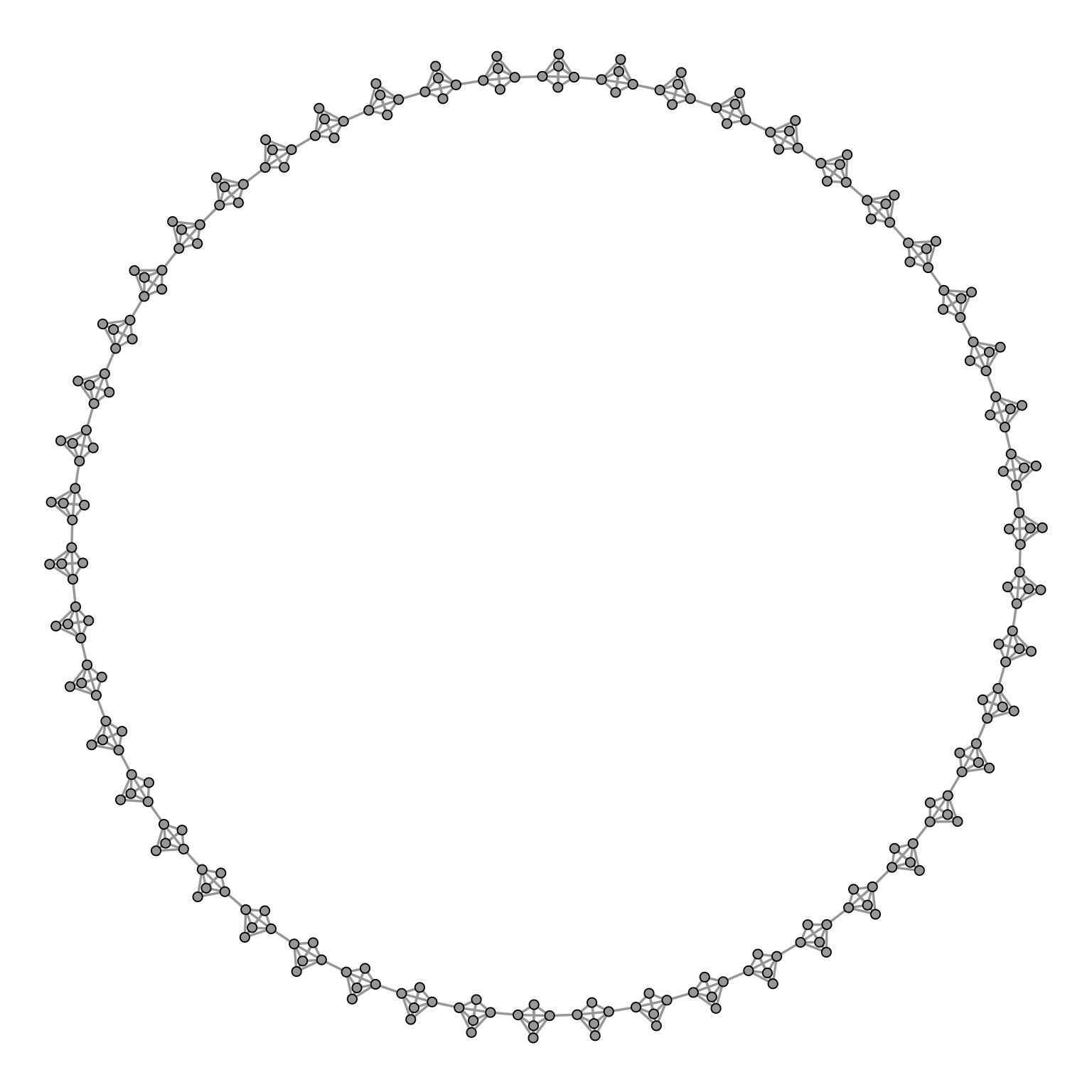

Resolution limit

Resolution limit

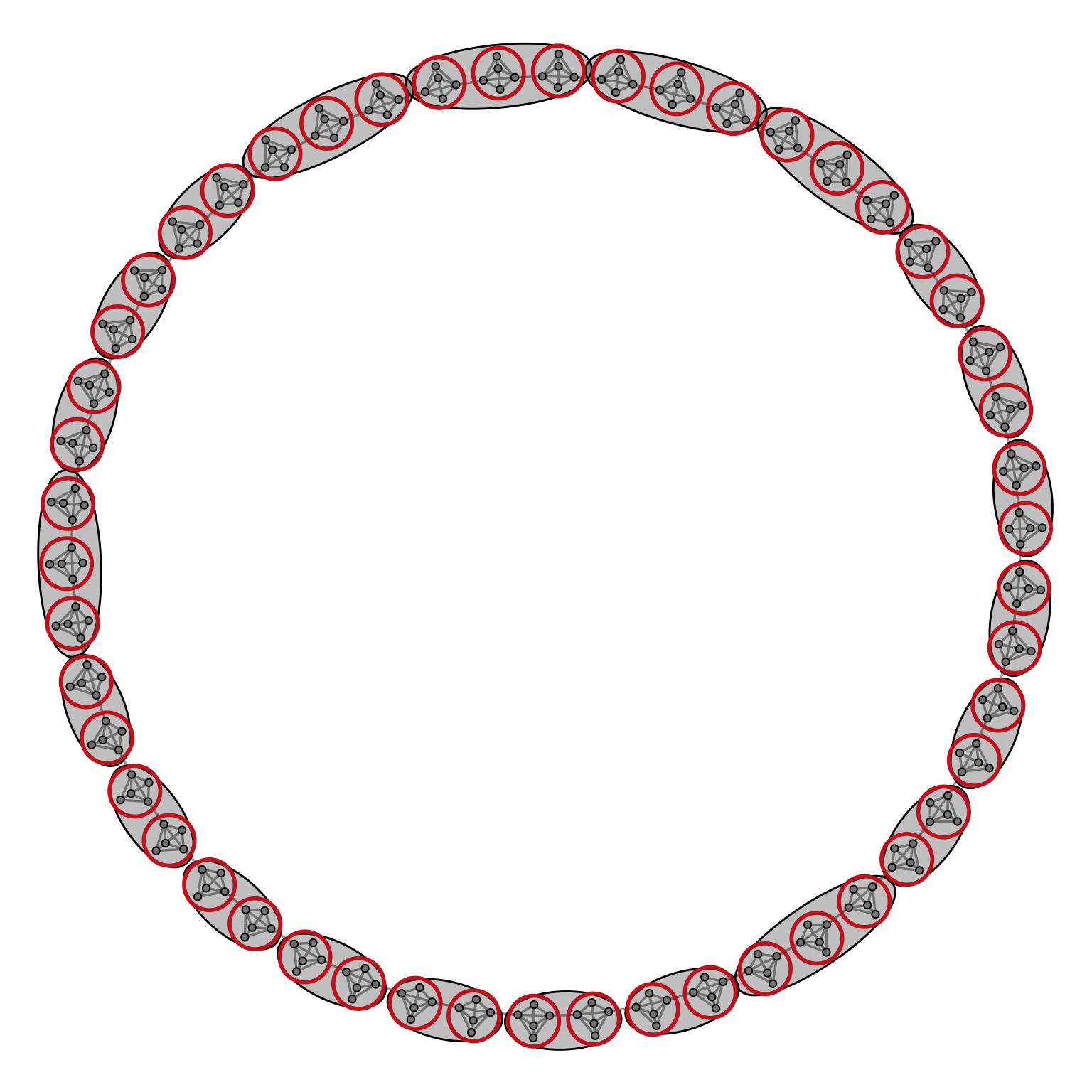

clu_louvain <- cluster_louvain(K50)
table(membership(clu_louvain))
#>
#>  1  2  3  4  5  6  7  8  9 10 11 12 13 14 15 16 17 18 19 20 21 22
#> 15 15 15 15 10 10 10 10 10 10 15 10 10 10 10 10 10 10 15 10 10 10

clu_leiden <- cluster_leiden(K50,objective_function = "CPM",resolution_parameter = 0.5)
table(membership(clu_leiden))
#>
#>  1  2  3  4  5  6  7  8  9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26
#>  5  5  5  5  5  5  5  5  5  5  5  5  5  5  5  5  5  5  5  5  5  5  5  5  5  5
#> 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
#>  5  5  5  5  5  5  5  5  5  5  5  5  5  5  5  5  5  5  5  5  5  5  5  5

Link to paper

Resolution limit

Core-Periphery

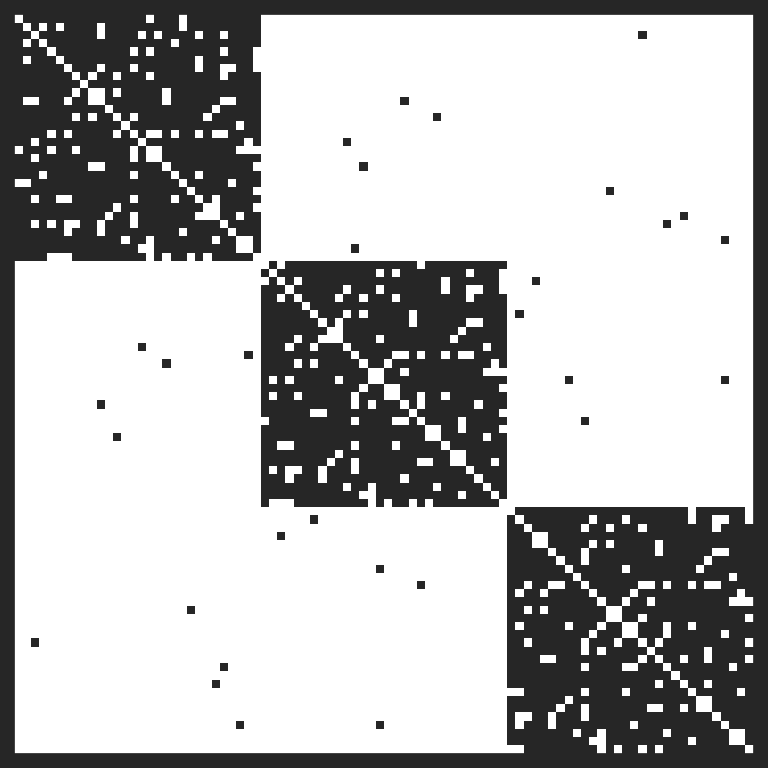

cohesive subgroups: dense groups sparsely connected to each other
core-periphery: dense core and a sparse, unconnected periphery

The function split_graph() can be used to create graphs with a perfect core-periphery structure. This means that there are two groups of nodes: One forms a clique (the core: all nodes are pairwise connected) and the other group is only connected to nodes in the core (the periphery: all nodes are pairwise disconnected)

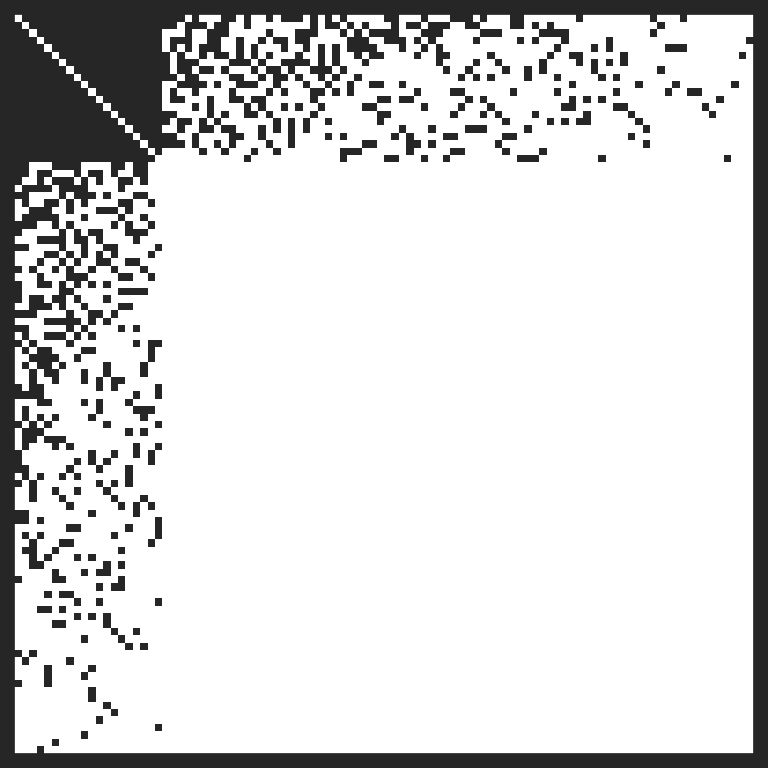

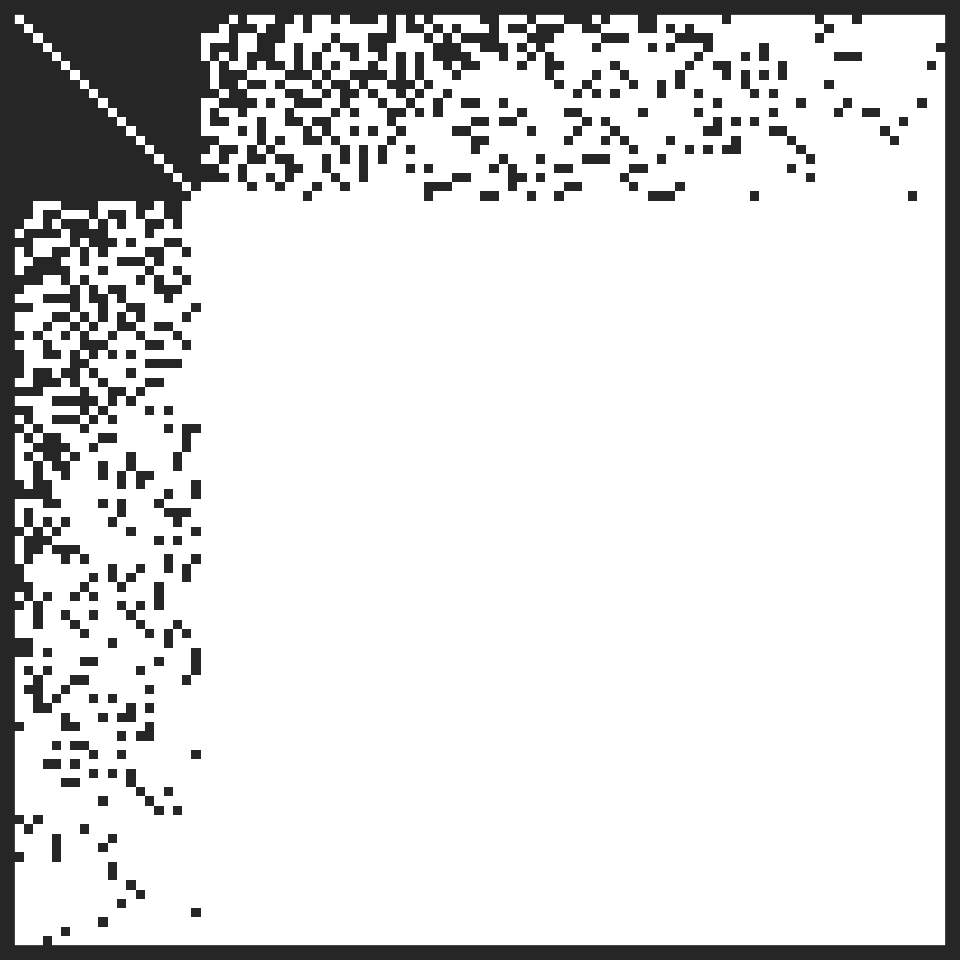

Discrete core-periphery model

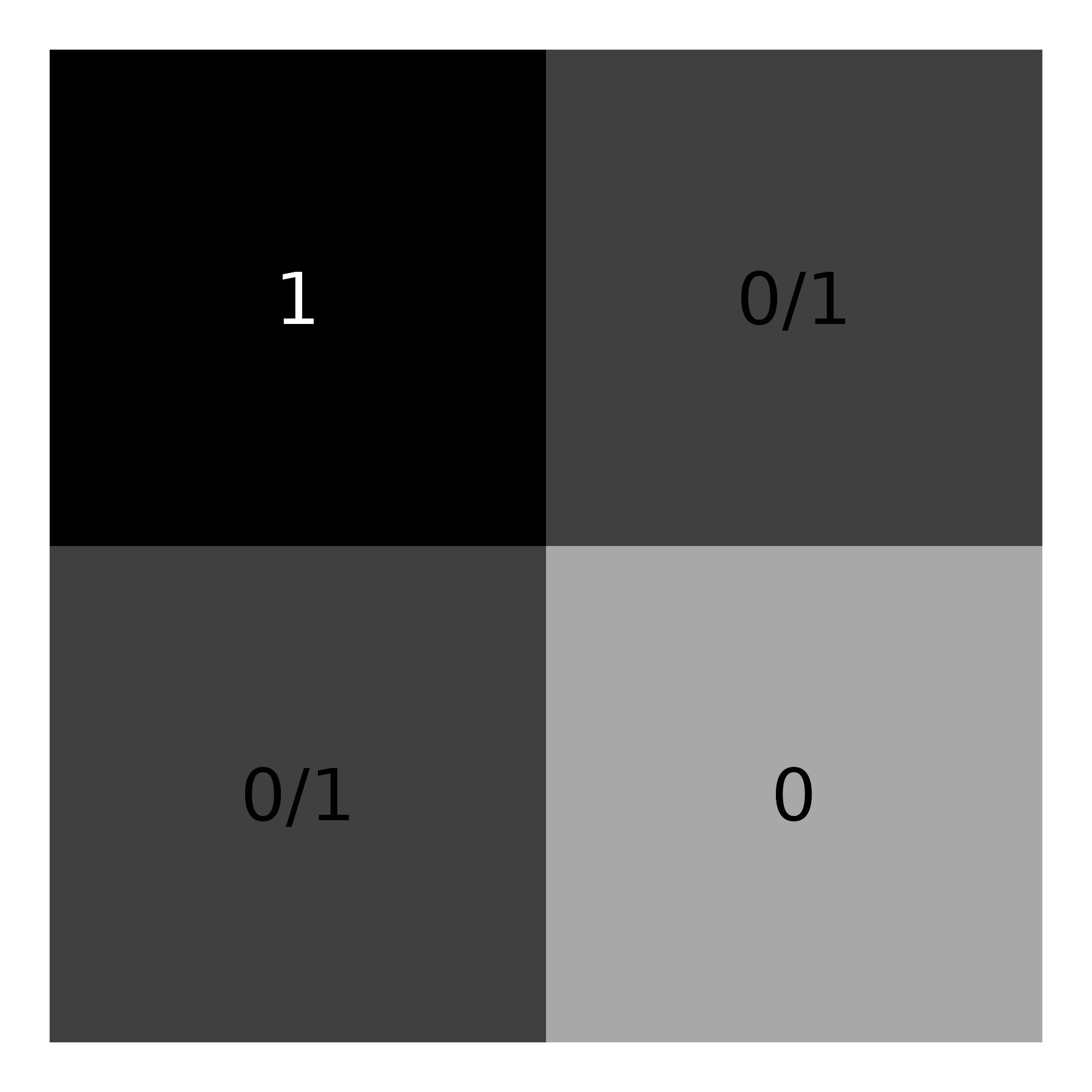

Partition the adjacency matrix into core and periphery such that the number of edges are maximized in the core and the number of edges in the periphery are minimized

Core-Periphery in

Discrete model implemented in the package netUtils

library(netUtils)
data("core_graph")
core_periphery(core_graph)
#> $vec
#>   [1] 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
#>  [38] 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
#>  [75] 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
#>
#> $corr
#> [1] 1

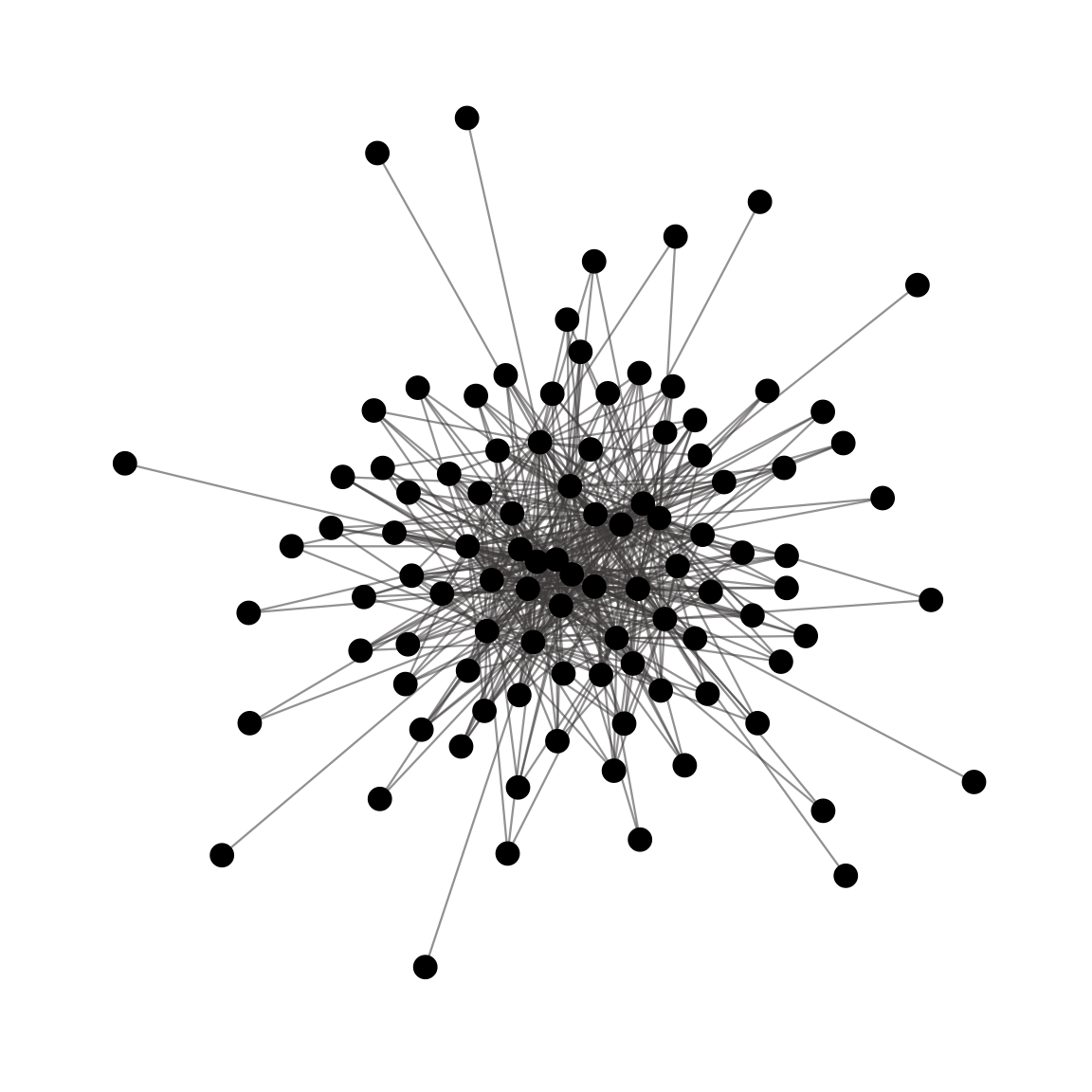

rgraph <- sample_gnp(100,0.2)
core_periphery(rgraph)
#> $vec
#>   [1] 0 1 1 0 0 1 0 1 1 1 0 1 0 0 1 1 1 0 0 1 0 0 0 1 1 0 0 0 1 0 1 1 0 0 1 0 1
#>  [38] 1 0 1 0 0 0 1 1 1 0 0 0 0 1 0 1 0 1 1 0 0 1 1 1 0 1 0 0 0 0 1 0 0 1 0 1 0
#>  [75] 0 1 1 1 0 0 1 1 1 0 0 0 0 0 1 0 1 0 1 1 0 1 0 1 0 1
#>
#> $corr
#> [1] 0.1466399

higher corr ⇒ better fit with an idealized core-periphery structure

Network Positions and Social Roles

The Duality of Position and Roles

• find actors that have similar patterns of ties
• these actors have the same structural positions
• analyse if actors in same positions have certain roles

The Position Approach

How similar are two nodes in terms of patterns of connectivity with others?

Partition the nodes into so called equivalence or similarity classes

• structural equivalence
• regular equivalence
• structural similarity

Nodes in same equivalence class occupy the same position in the network

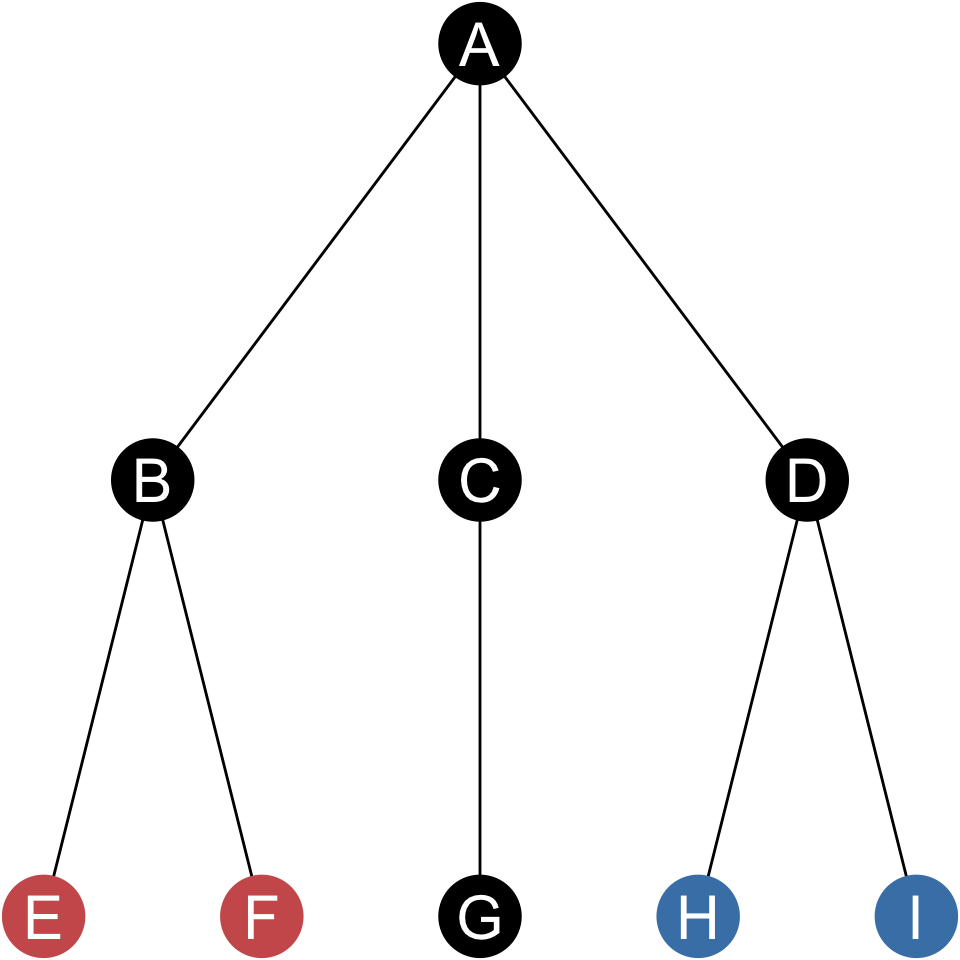

Structural Equivalence

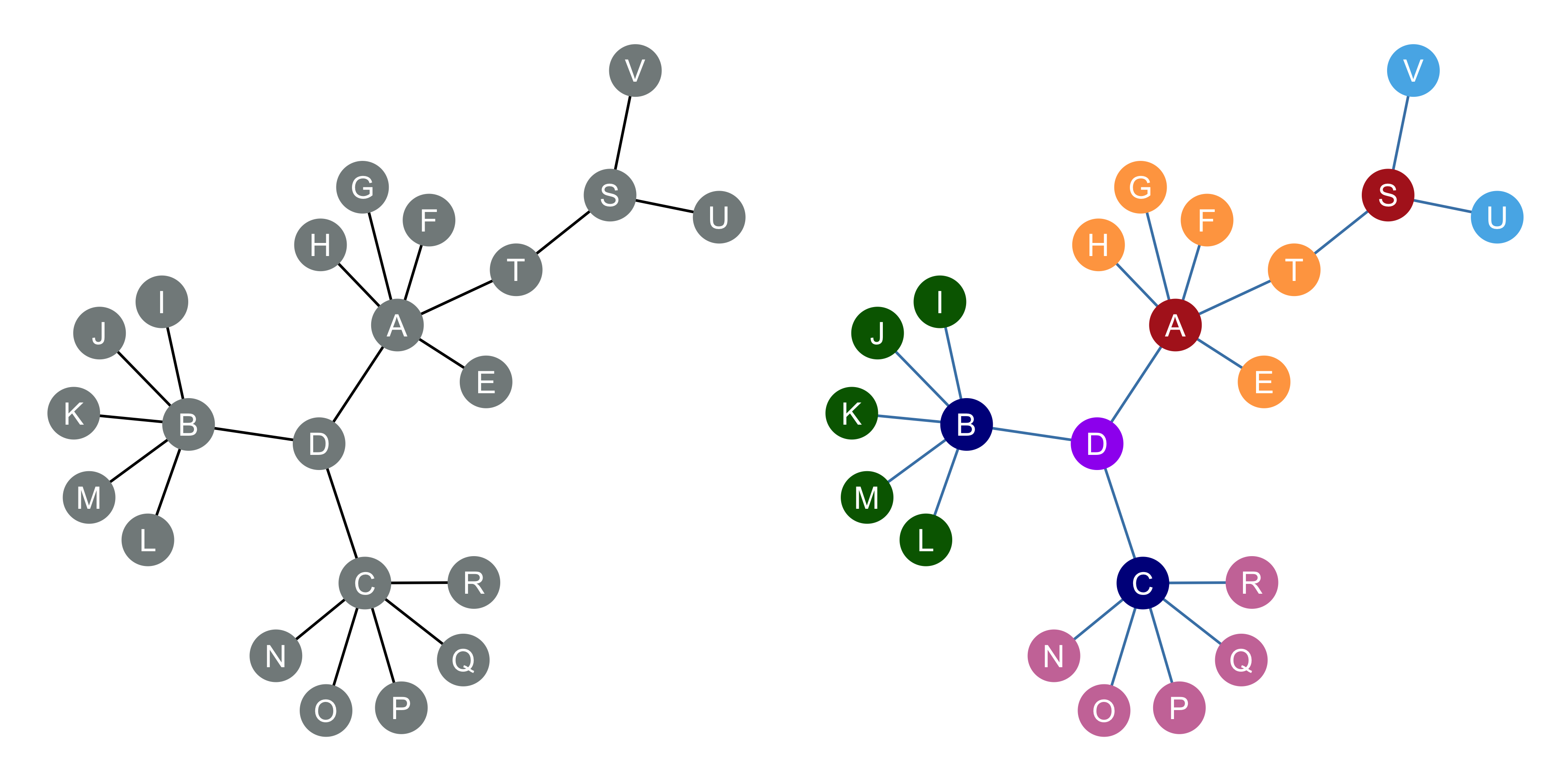

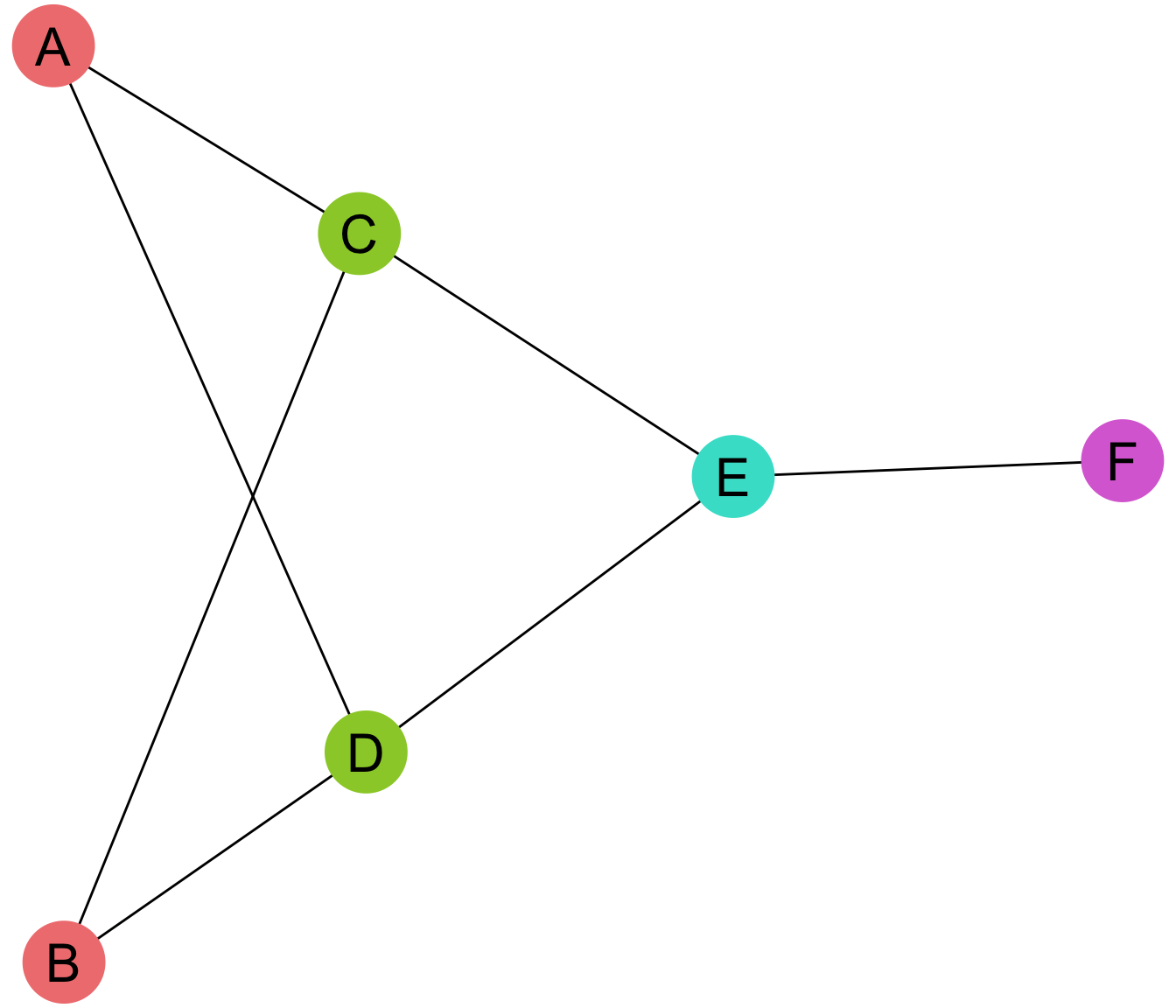

Actors are structurally equivalent

• if they have the same ties
  to the same other actors

• if completely substitutable

equivalence classes with more than one actor

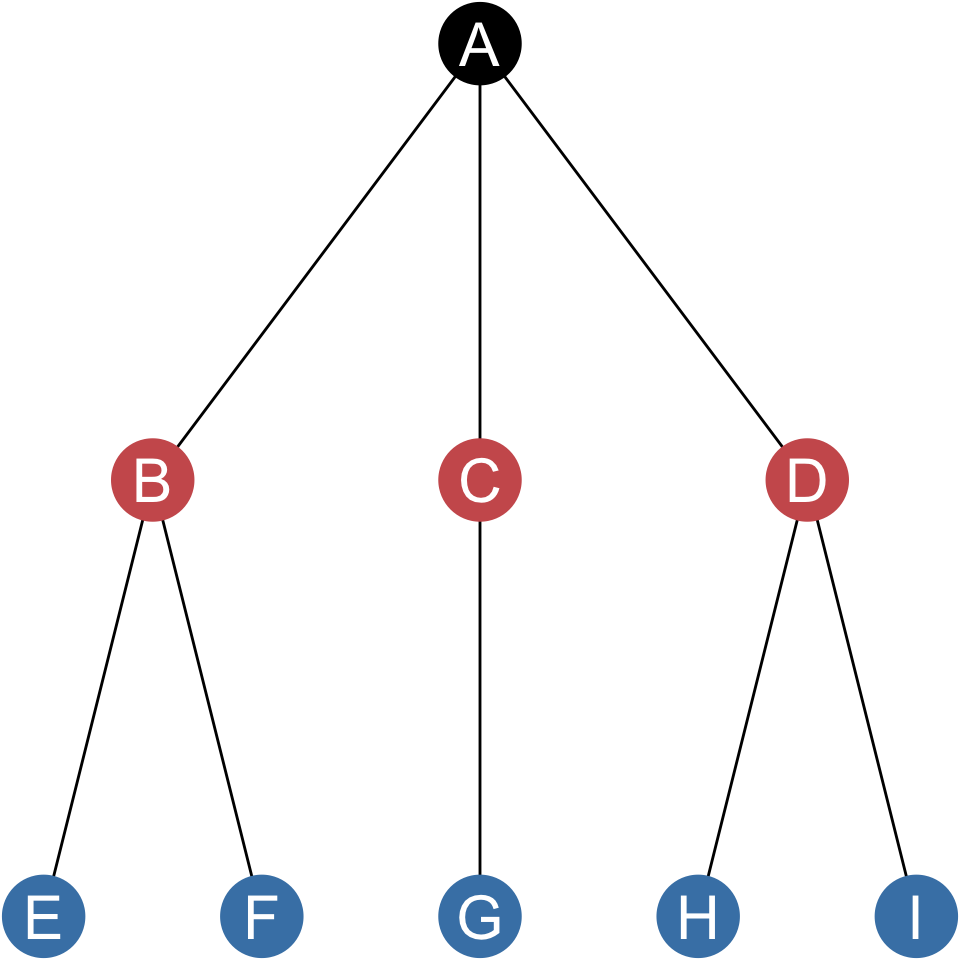

Regular Equivalence

Actors are regularly equivalent

• if they are equally related to equivalent others (less strict)

ex mothers

Structural Similarity

• In most real-world applications, the standard definition of structural equivalence is much too strong.

• We need a measure of position that allows for “more or less” rather than “yes” and “no.”

• This is what is called structurally similarity

• Two nodes are structurally similar if they have similar patterns of connectivity with the same others.

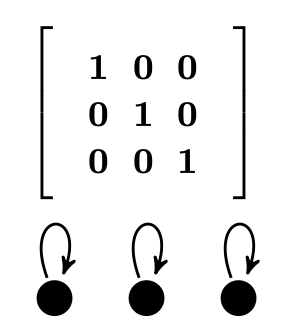

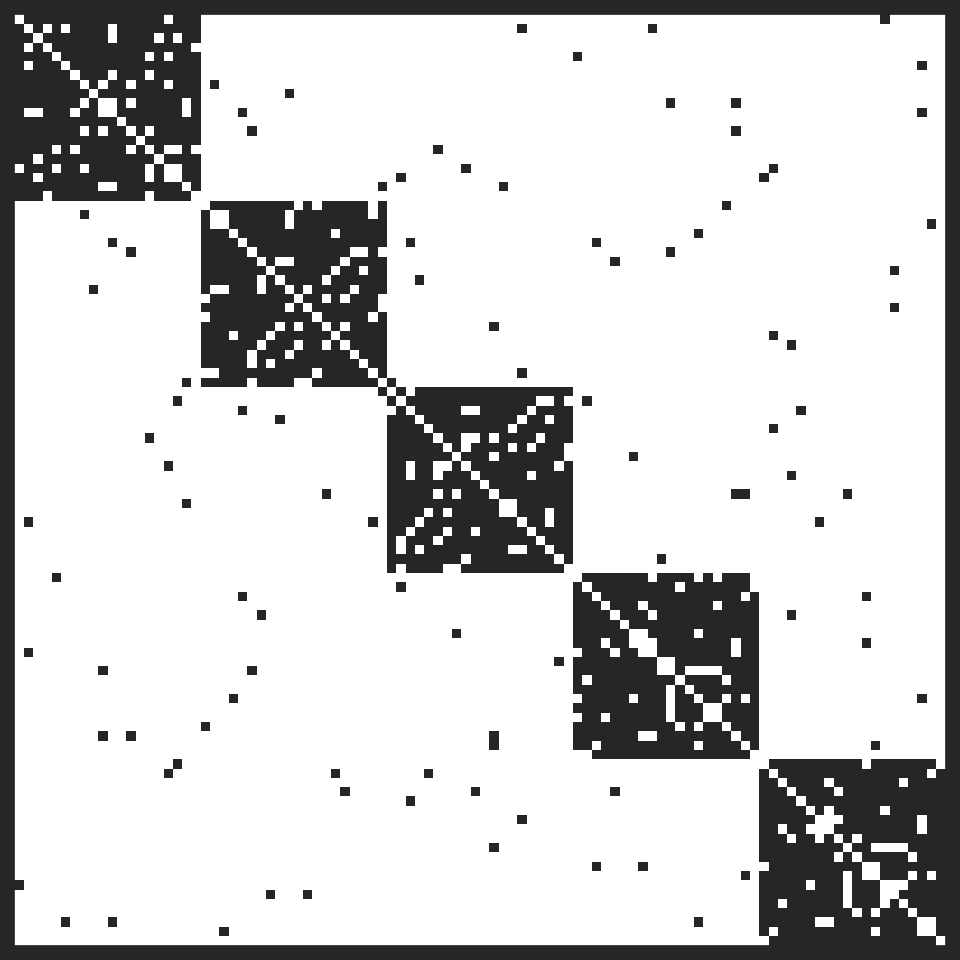

Blockmodeling

Outline the structural neighborhood pattern of actors

• use adjacency and distance matrices
• permute so that equivalent actors are next to each other
• grouping of the actors represented as blocks

Decide on a rule which governs the assignment of a zero or one to the relational tie between positions in the model

• 1-blocks
• 0-blocks
• or approximation

Blockmodeling

Image matrix

• cells in the blocks of the adjacency matrix reduced to single cells
• 1-blocks/0-blocks (or approximation)

Reduced graph

• blocks as nodes
• 1-blocks are ties between nodes

Check for certain structural patterns based on the partitioning
(core-periphery, cohesive subgroups or factions, group brokerage, etc)

Blockmodels: Cohesive Subgroups

image matrix

reduced graph

Blockmodels: Core-Periphery

image matrix

reduced graph

Example

The Correlation Distance

Compares the row (or column) vectors of nodes in a graph and returns a number between -1 and +1

Ex. Structural equivalence:

• Pairs of structurally equivalent nodes get a +1

  • structurally similar get positive values

• Nodes that are completely different from one another (that is connect to completely disjoint sets of neighbors) get a -1

  • structurally dissimilar get negative values

• Nodes that have an even combination of similarities and differences in their pattern of connectivity to others get a number close to zero

The Correlation Distance

The correlation distance between two nodes \(k\) and \(l\): \[ d^{\text{corr}}_{k,l} = \frac{\sum_j \left( a_{(k)j} - \bar{a}_{(k)j} \right) \left( a_{(l)j} - \bar{a}_{(l)j} \right)} {\sqrt{ \sum_j \left( a_{(k)j} - \bar{a}_{(k)j} \right)^2 \sum_j \left( a_{(l)j} - \bar{a}_{(l)j} \right)^2 }} \] \(a_{(k)j}\) is the row (or column) vector for node \(k\) in the adjacency matrix
\(a_{(l)j}\) is the row (or column) vector for node \(l\) in the adjacency matrix
and \[\bar{a}_{(k)j} = \frac{\sum_j a_{kj}}{N}\]

Example: Structural Equivalence

	A	B	C	D	E	F
A	0	0	1	1	0	0
B	0	0	1	1	0	0
C	1	1	0	0	1	0
D	1	1	0	0	1	0
E	0	0	1	1	0	1
F	0	0	0	0	1	0

Example: Structural Equivalence

Let’s look at the row vector for node A

0

0

1

1

0

0

\[ \implies \sum_i a_{(A)j} = 0 + 0 + 1 + 1 + 0 + 0 = 2 \]

And we know that \(N = 6\), so row mean is

\[ \overline{a}_{(A)j} = \frac{\sum_i a_{Aj}}{N} = \frac{2}{6}=0.33 \]

Example: Structural Equivalence

Vector of row entries minus the row mean:

(0 - 0.33)

(0 - 0.33)

(1 - 0.33)

(1 - 0.33)

(0 - 0.33)

(0 - 0.33)

Result of subtracting row mean from row entries:

-0.33

-0.33

0.67

0.67

-0.33

-0.33

Which implies: \[ \sum_j (a_{(A)j} - \overline{a}_{(A)j}) = -0.33 -0.33 + 0.67 + 0.67 -0.33 -0.33 = 0.02 \]

similarly compute the rest…

Example: Structural Equivalence

When we do that for each pair of nodes in the example, we end up with the structural similarity matrix:

	A	B	C	D	E	F
A	–	1	-0.66	-0.66	0.71	-0.32
B	1	–	-0.66	-0.66	0.71	-0.32
C	-0.66	-0.66	–	1	-0.93	0.08
D	-0.66	-0.66	1	–	-0.93	0.08
E	0.71	0.71	-0.93	-0.93	–	-0.45
F	-0.32	-0.32	0.08	0.08	-0.45	–

CONCOR

(CONvergence of iterated CORrelations)

what of we want to find the correlation distance of a correlation distance matrix?

CONCOR

second iteration

	A	B	C	D	E	F
A	–	1	-0.94	-0.94	0.97	-0.65
B	1	–	-0.94	-0.94	0.97	-0.65
C	-0.94	-0.94	–	1	-0.98	0.47
D	-0.94	-0.94	1	–	-0.98	0.47
E	0.97	0.97	-0.98	-0.98	–	-0.64
F	-0.65	-0.65	0.47	0.47	-0.64	–

CONCOR

third iteration

	A	B	C	D	E	F
A	–	1	-1	-1	1	-0.93
B	1	–	-1	-1	1	-0.93
C	-1	-1	–	1	-1	0.89
D	-1	-1	1	–	-1	0.89
E	1	1	-1	-1	–	-0.93
F	-0.93	-0.93	0.89	0.89	-0.93	–

CONCOR

forth iteration

	A	B	C	D	E	F
A	–	1	-1	-1	1	-1
B	1	–	-1	-1	1	-1
C	-1	-1	–	1	-1	1
D	-1	-1	1	–	-1	1
E	1	1	-1	-1	–	-1
F	-1	-1	1	1	-1	–

CONCOR

structurally equivalent nodes have exactly the same pattern of +1 and -1 across rows

	A	B	C	D	E	F
A	--	1	-1	-1	1	-1
B	1	--	-1	-1	1	-1
C	-1	-1	--	1	-1	1
D	-1	-1	1	--	-1	1
E	1	1	-1	-1	--	-1
F	-1	-1	1	1	-1	--

(Breiger, Boorman, and Arabie 1975)

Worksheet 4a Example
