Tidymodeling

Part I

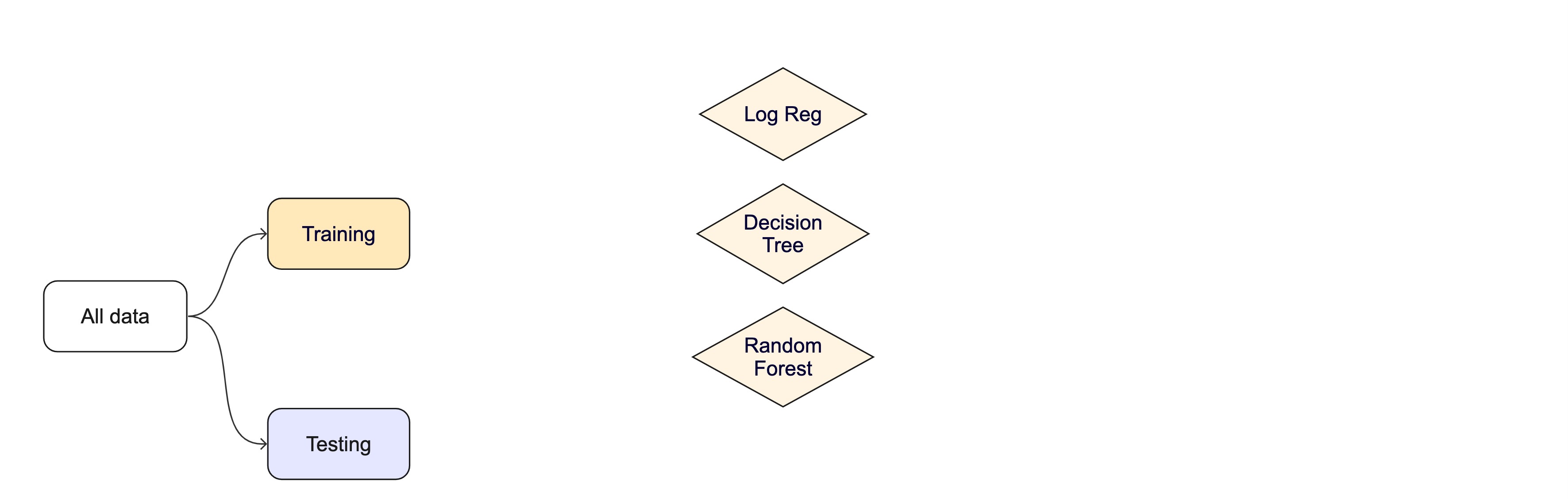

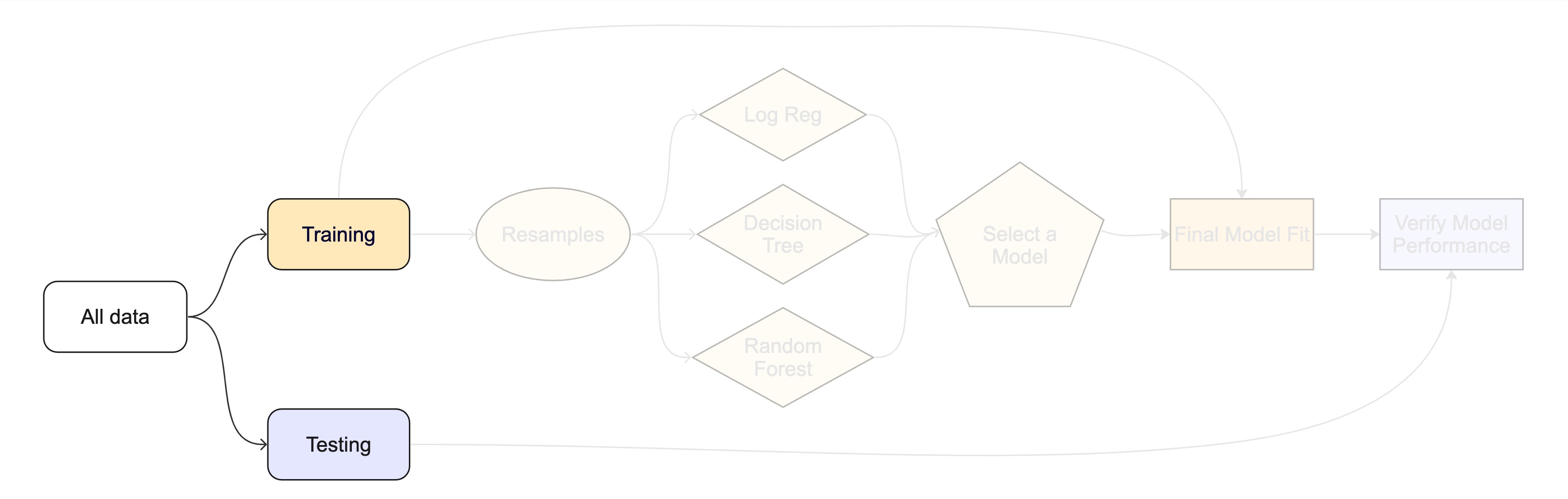

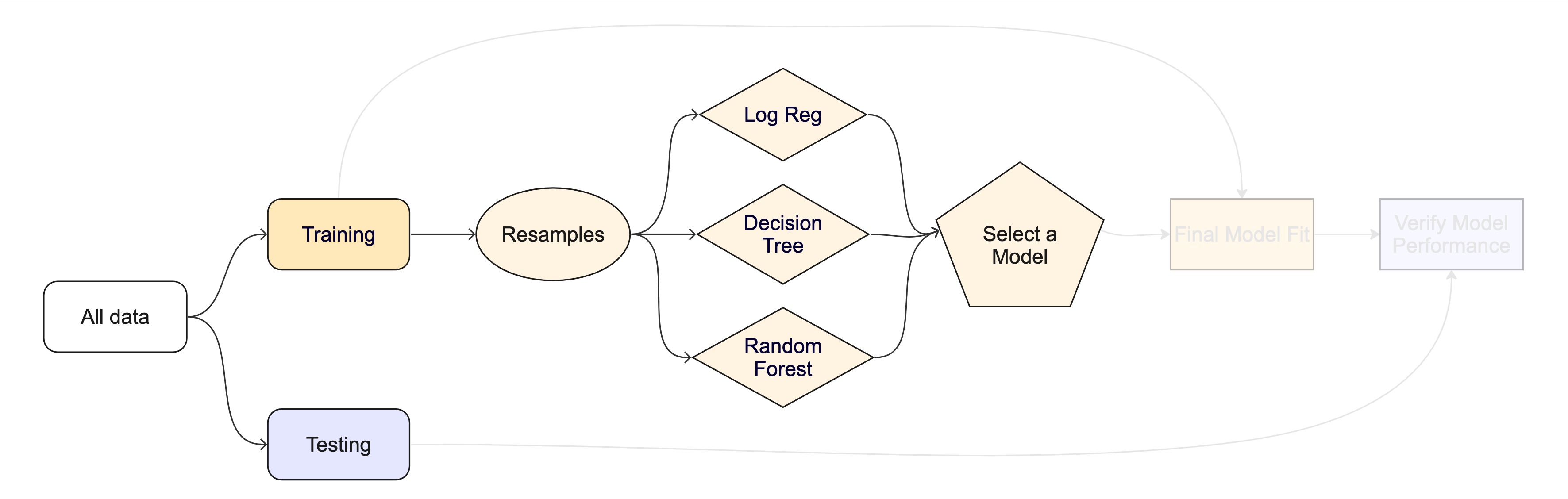

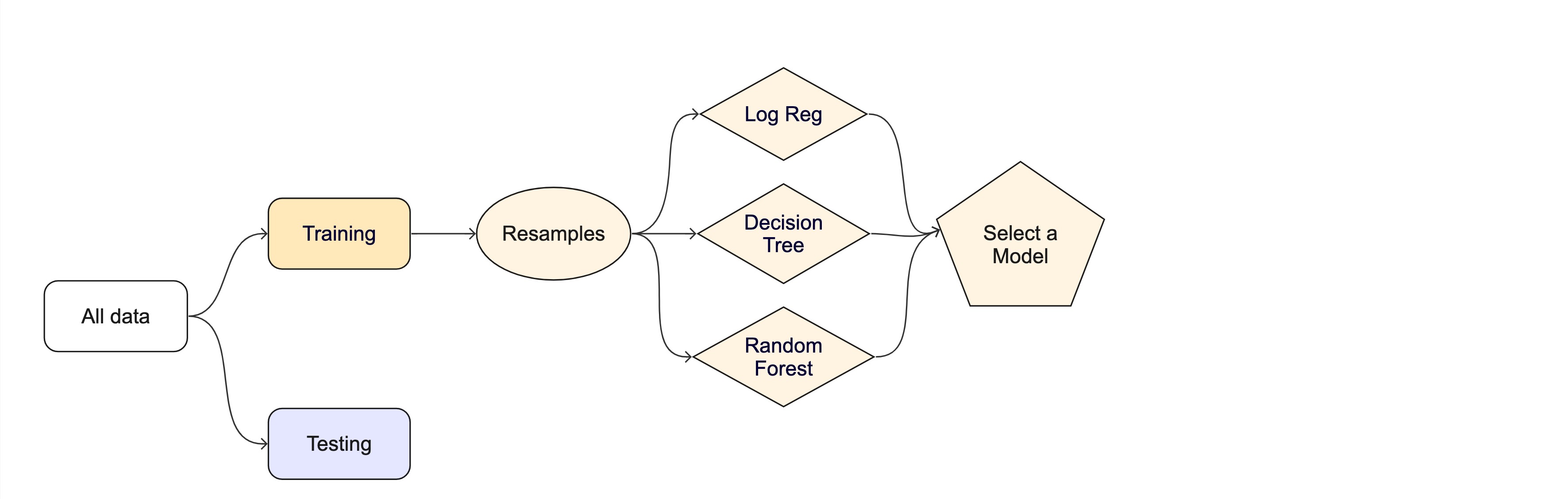

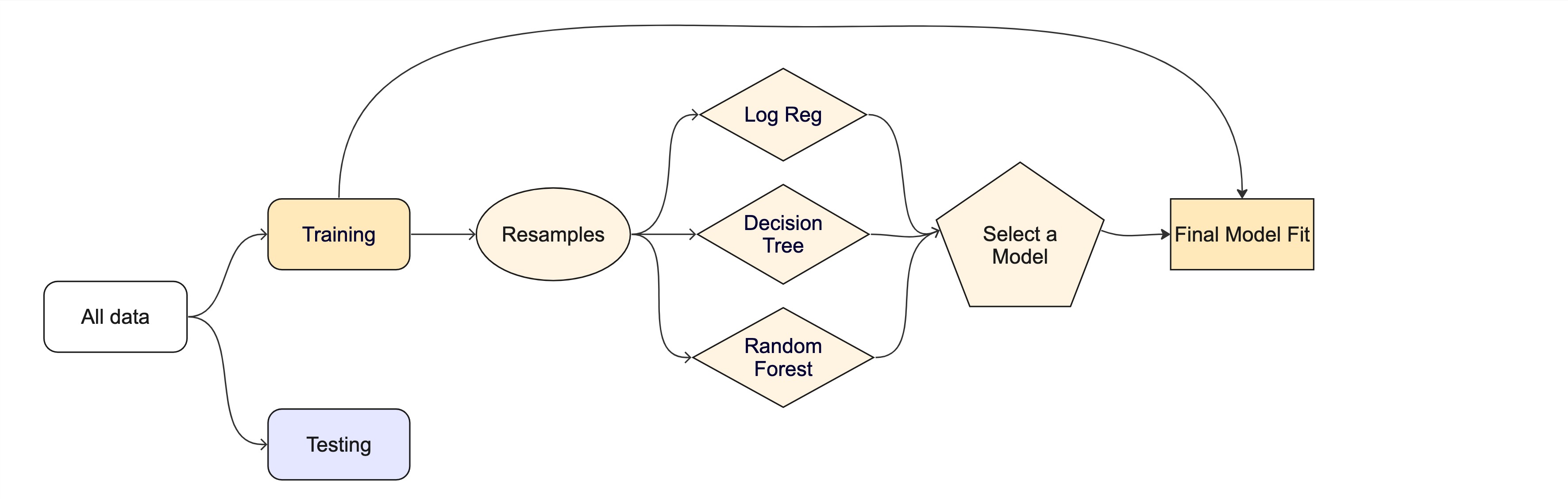

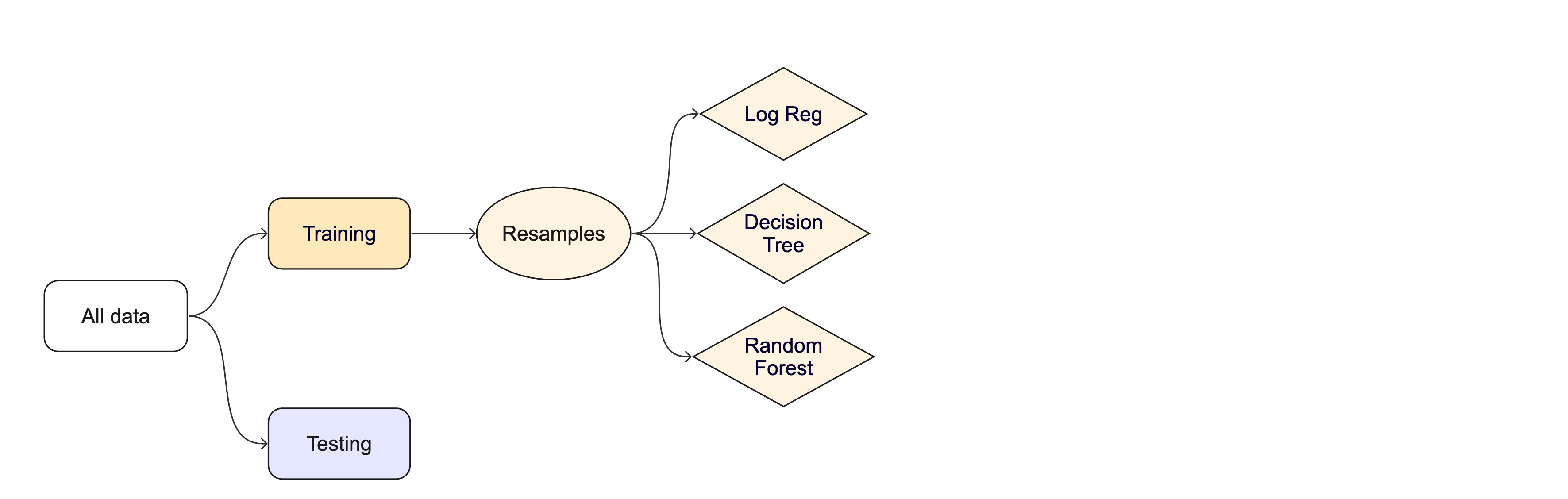

Running Example Part I: The Whole Game

• Minimal version of predictive modeling process
• Feature engineering and tuning as iterative extensions

Running Example Part I: The Whole Game

Running Example Part I: The Whole Game

Running Example Part I: The Whole Game

Running Example Part I: The Whole Game

Running Example Part I: The Whole Game

Running Example Part I: The Whole Game

Open Worksheet 1 📄

Data on forests in Washington

• The U.S. Forest Service maintains ML models to predict whether a plot of land is “forested.”
• This classification is important for all sorts of research, legislation, and land management purposes.
• Plots are typically remeasured every 10 years and this dataset contains the most recent measurement per plot.
• Type ?forested to learn more about this dataset, including references.

Data on forests in Washington

• N = 7,107 plots of land, one from each of 7,107 6000-acre hexagons in WA.
• A nominal outcome, forested, with levels "Yes" and "No", measured “on-the-ground.”
• 18 remotely-sensed and easily-accessible predictors:
  • numeric variables based on weather and topography.
  • nominal variables based on classifications from other governmental orgs.

• Those nominal variables are classifications similar to “forested” but from other agencies. e.g. land_type is from the European Space Agency, and is a remotely-sensed 3-class distribution based on predictions for how the land is used.

Checklist for predictors

• Is it ethical to use this variable? (Or even legal?)

• Will this variable be available at prediction time?

• Does this variable contribute to explainability?

• re: ethics – what issues might arise from releasing the true lat and lon? In reality, these lat and lon are slightly jittered to help ensure trust with landowners who allow surveyers to come take measurements.

Data on forests in Washington

library(tidymodels)
library(forested)

forested
#> # A tibble: 7,107 × 19
#>    forested  year elevation eastness northness roughness tree_no_tree dew_temp
#>    <fct>    <dbl>     <dbl>    <dbl>     <dbl>     <dbl> <fct>           <dbl>
#>  1 Yes       2005       881       90        43        63 Tree             0.04
#>  2 Yes       2005       113      -25        96        30 Tree             6.4
#>  3 No        2005       164      -84        53        13 Tree             6.06
#>  4 Yes       2005       299       93        34         6 No tree          4.43
#>  5 Yes       2005       806       47       -88        35 Tree             1.06
#>  6 Yes       2005       736      -27       -96        53 Tree             1.35
#>  7 Yes       2005       636      -48        87         3 No tree          1.42
#>  8 Yes       2005       224      -65       -75         9 Tree             6.39
#>  9 Yes       2005        52      -62        78        42 Tree             6.5
#> 10 Yes       2005      2240      -67       -74        99 No tree         -5.63
#> # ℹ 7,097 more rows
#> # ℹ 11 more variables: precip_annual <dbl>, temp_annual_mean <dbl>,
#> #   temp_annual_min <dbl>, temp_annual_max <dbl>, temp_january_min <dbl>,
#> #   vapor_min <dbl>, vapor_max <dbl>, canopy_cover <dbl>, lon <dbl>, lat <dbl>,
#> #   land_type <fct>

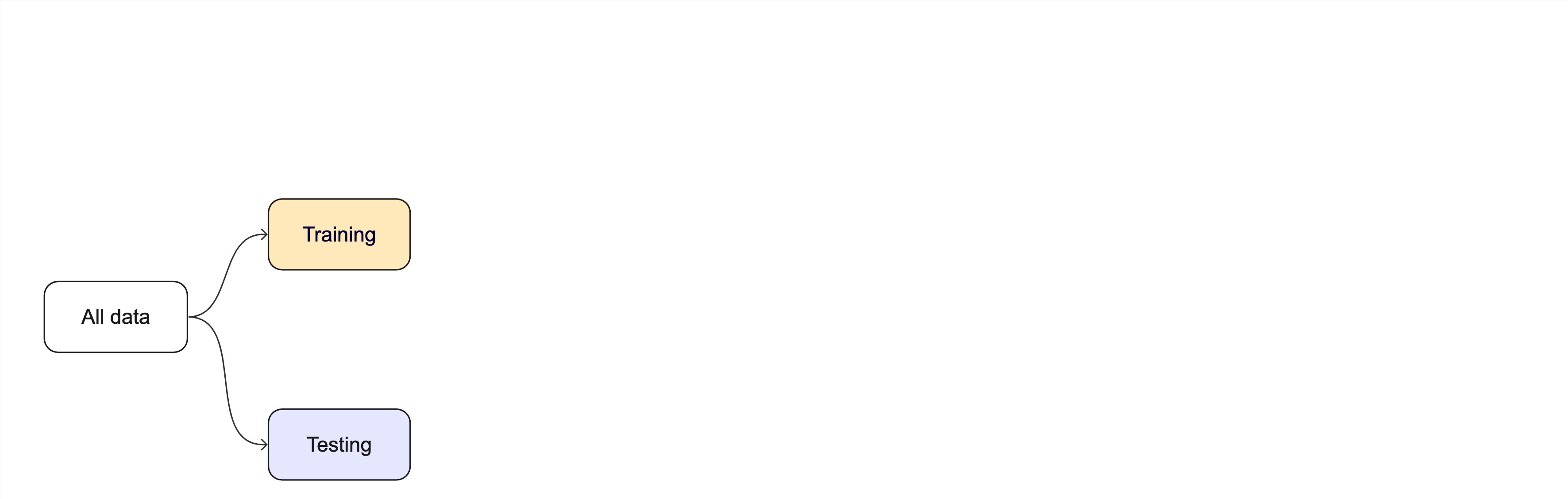

Data splitting and spending

For machine learning, we typically split data into training and test sets:

• The training set is used to estimate model parameters.
• The test set is used to find an independent assessment of model performance.

Do not 🚫 use the test set during training.

Data splitting and spending

The more data
we spend 🤑

the better estimates
we’ll get.

Data splitting and spending

• Spending too much data in training prevents us from computing a good assessment of predictive performance.

• Spending too much data in testing prevents us from computing a good estimate of model parameters.

Your turn

When is a good time to split your data?

05:00

The testing data is precious 💎

The initial split

set.seed(123)
forested_split <- initial_split(forested)
forested_split
#> <Training/Testing/Total>
#> <5330/1777/7107>

This function uses a good default, but this depends on your specific goal/data

What is set.seed()?

To create that split of the data, R generates “pseudo-random” numbers: while they are made to behave like random numbers, their generation is deterministic given a “seed”.

This allows us to reproduce results by setting that seed.

Which seed you pick doesn’t matter, as long as you don’t try a bunch of seeds and pick the one that gives you the best performance.

Accessing the data

forested_train <- training(forested_split)
forested_test <- testing(forested_split)

The training set

forested_train
#> # A tibble: 5,330 × 19
#>    forested  year elevation eastness northness roughness tree_no_tree dew_temp
#>    <fct>    <dbl>     <dbl>    <dbl>     <dbl>     <dbl> <fct>           <dbl>
#>  1 No        2016       464       -5       -99         7 No tree          1.71
#>  2 Yes       2016       166       92        37         7 Tree             6
#>  3 No        2016       644      -85       -52        24 No tree          0.67
#>  4 Yes       2014      1285        4        99        79 Tree             1.91
#>  5 Yes       2013       822       87        48        68 Tree             1.95
#>  6 Yes       2017         3        6       -99         5 Tree             7.93
#>  7 Yes       2014      2041      -95        28        49 Tree            -4.22
#>  8 Yes       2015      1009       -8        99        72 Tree             1.72
#>  9 No        2017       436      -98        19        10 No tree          1.8
#> 10 No        2018       775       63        76       103 No tree          0.62
#> # ℹ 5,320 more rows
#> # ℹ 11 more variables: precip_annual <dbl>, temp_annual_mean <dbl>,
#> #   temp_annual_min <dbl>, temp_annual_max <dbl>, temp_january_min <dbl>,
#> #   vapor_min <dbl>, vapor_max <dbl>, canopy_cover <dbl>, lon <dbl>, lat <dbl>,
#> #   land_type <fct>

The test set

🙈

There are 1777 rows and 19 columns in the test set.

Your turn

Split your data so 20% is held out for the test set.

Try out different values in set.seed() to see how the results change.

05:00

Data splitting and spending

Split your data so 20% is held out for the test set.

set.seed(123)
forested_split <- initial_split(forested, prop = 0.8)
forested_train <- training(forested_split)
forested_test <- testing(forested_split)

nrow(forested_train)
#> [1] 5685
nrow(forested_test)
#> [1] 1422

Exploratory data analysis 🧐

Your turn

Explore the forested_train data on your own!

• What’s the distribution of the outcome, forested?
• What’s the distribution of numeric variables like precip_annual?
• How does the distribution of forested differ across the categorical variables?

10:00

Make a plot or summary and then share with neighbor

forested_train %>%
  ggplot(aes(x = forested)) +
  geom_bar()

forested_train %>%
  ggplot(aes(x = forested, fill = tree_no_tree)) +
  geom_bar()

forested_train %>%
  ggplot(aes(x = precip_annual, fill = forested, group = forested)) +
  geom_histogram(position = "identity", alpha = .7)

forested_train %>%
  ggplot(aes(x = precip_annual, fill = forested, group = forested)) +
  geom_histogram(position = "fill")

forested_train %>%
  ggplot(aes(x = lon, y = lat, col = forested)) +
  geom_point()

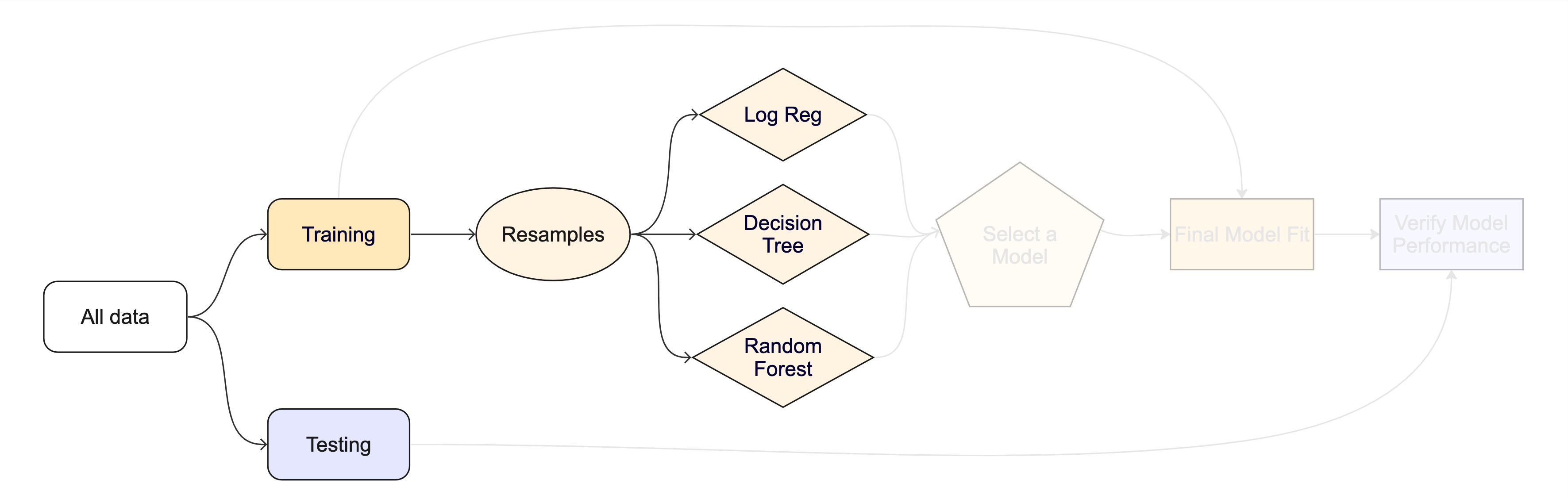

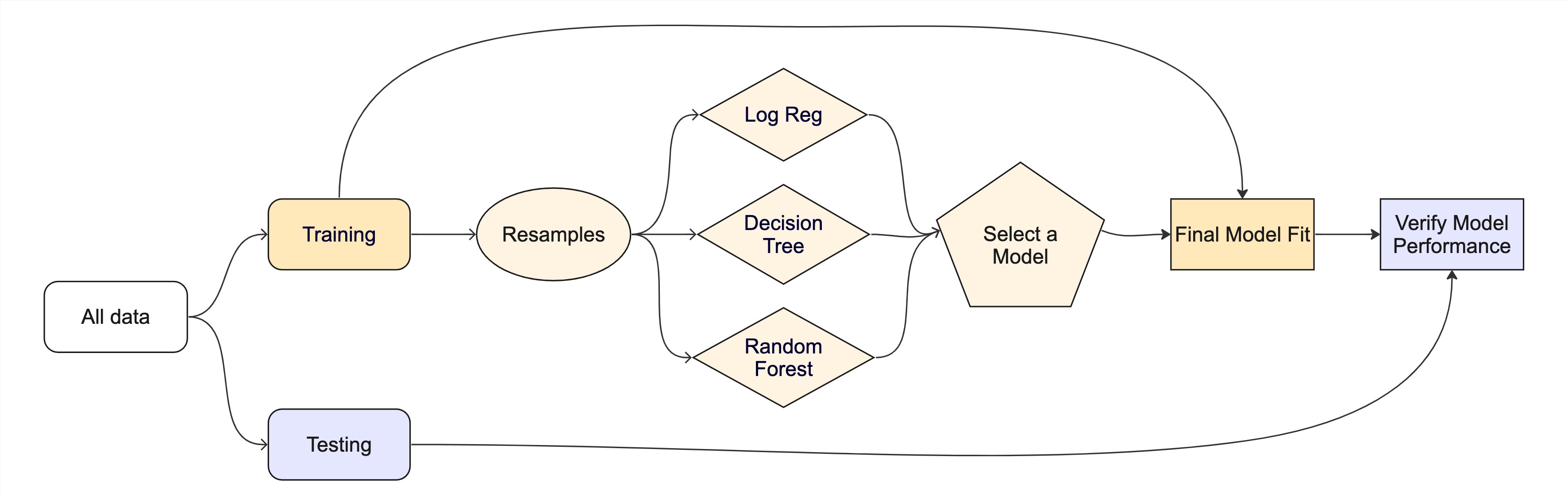

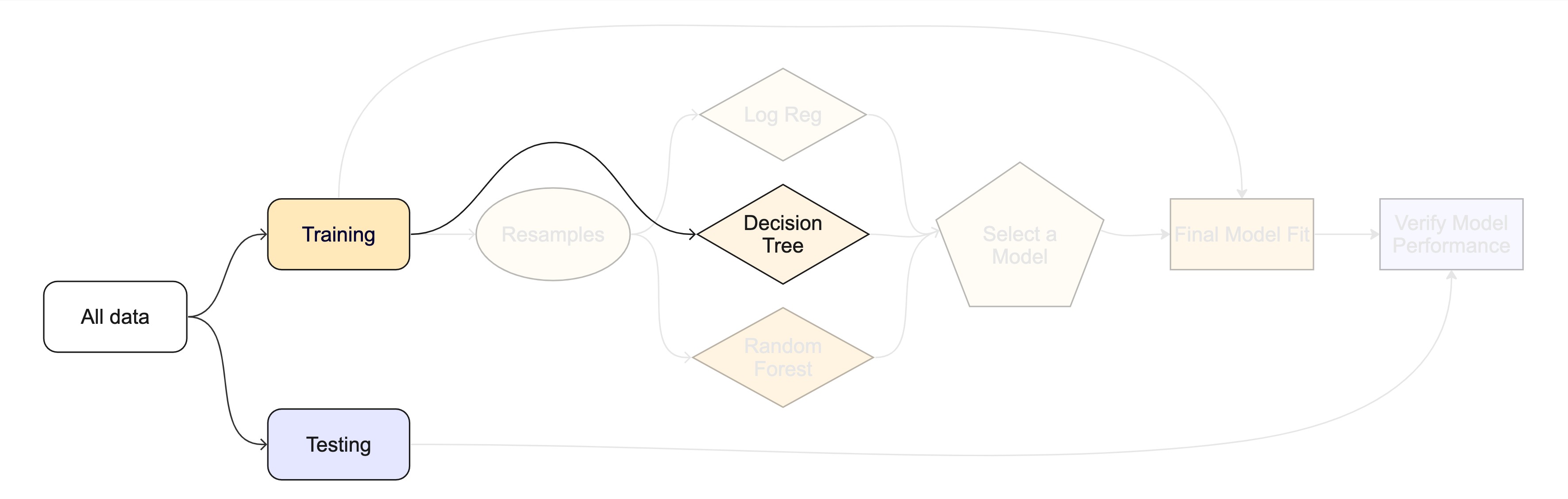

The whole game - status update

Build a model

Open Worksheet 2 📄

And now it’s time for…

How do you fit a linear model in R?

How many different ways can you think of?

• lm for linear model

• glmnet for regularized regression

• keras for regression using TensorFlow

• stan for Bayesian regression

• spark for large data sets

• brulee for regression using torch

To specify a model

• Choose a model
• Specify an engine
• Set the mode

Models have default engines

To specify a model

logistic_reg()
#> Logistic Regression Model Specification (classification)
#>
#> Computational engine: glm

To specify a model

• Choose a model
• Specify an engine
• Set the mode

The computational engine indicates how the model is fit, such as with a specific R package implementation or even methods outside of R like Keras or Stan

To specify a model

logistic_reg() %>%
  set_engine("glmnet")
#> Logistic Regression Model Specification (classification)
#>
#> Computational engine: glmnet

To specify a model

logistic_reg() %>%
  set_engine("stan")
#> Logistic Regression Model Specification (classification)
#>
#> Computational engine: stan

To specify a model

• Choose a model
• Specify an engine
• Set the mode

The mode denotes in what kind of modeling context it will be used

To specify a model

decision_tree()
#> Decision Tree Model Specification (unknown mode)
#>
#> Computational engine: rpart

To specify a model

decision_tree() %>%
  set_mode("classification")
#> Decision Tree Model Specification (classification)
#>
#> Computational engine: rpart

All available models are listed at https://www.tidymodels.org/find/parsnip/

To specify a model

• Choose a model
• Specify an engine
• Set the mode

Your turn

Run the tree_spec chunk in your .qmd.

Edit this code to use a logistic regression model.

All available models are listed at https://www.tidymodels.org/find/parsnip/

Extension/Challenge: Edit this code to use a different model. For example, try using a conditional inference tree as implemented in the partykit package by changing the engine - or try an entirely different model type!

10:00

Models we’ll be using today

• Logistic regression
• Decision trees

Logistic regression

Logistic regression

Logistic regression

• Logit of outcome probability modeled as linear combination of predictors:

\(log(\frac{p}{1 - p}) = \beta_0 + \beta_1\cdot \text{A}\)

• Find a sigmoid line that separates the two classes

Decision trees

Decision trees

• Series of splits or if/then statements based on predictors

• First the tree grows until some condition is met (maximum depth, no more data)

• Then the tree is pruned to reduce its complexity

Decision trees

All models are wrong, but some are useful!

Logistic regression

Decision trees

A model workflow

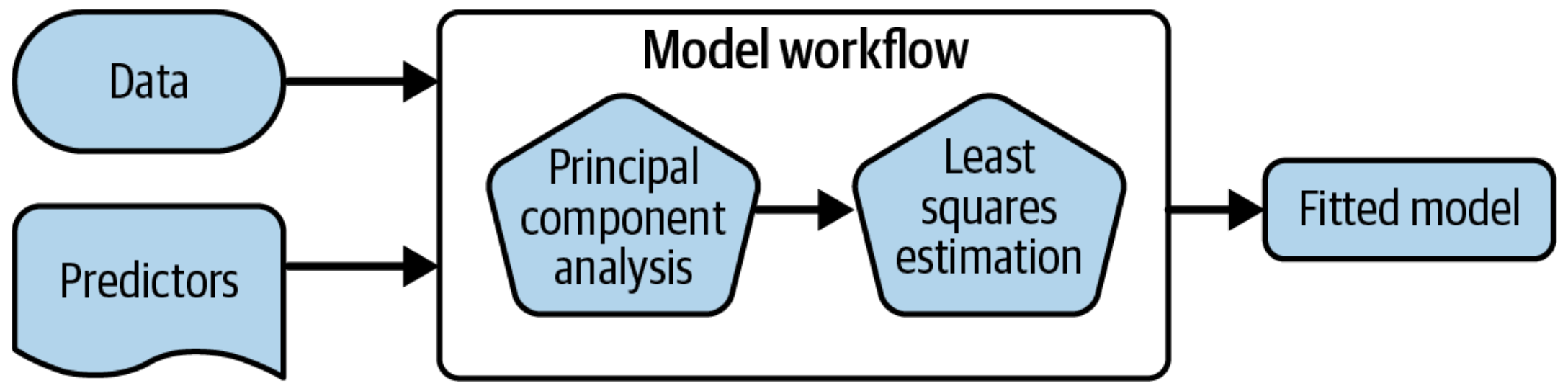

Workflows bind preprocessors and models

Explain that PCA that is a preprocessor / dimensionality reduction, used to decorrelate data

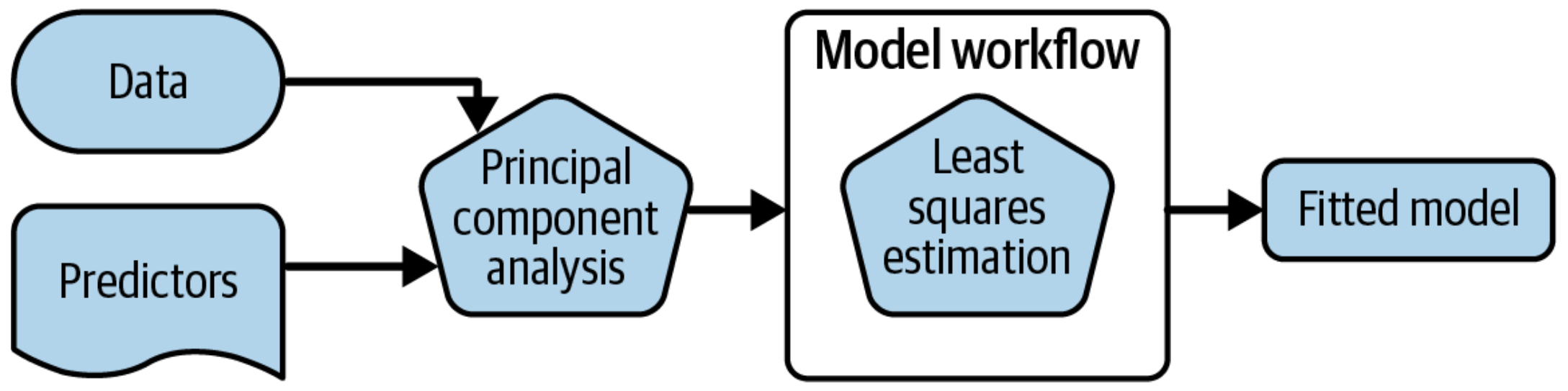

What is wrong with this?

In this diagram, PCA is applied directly to the full dataset, before the modeling workflow begins. Because it leaks information from the full dataset (including the test set or validation folds) into the preprocessing step. This is a form of data leakage, and it means your model could look like it performs better than it truly does, because it has “peeked” at data it shouldn’t have seen.

Why a workflow()?

• Workflows handle new data better than base R tools in terms of new factor levels

• You can use other preprocessors besides formulas (more on feature engineering in part 2 of the course)

• They can help organize your work when working with multiple models

• Most importantly, a workflow captures the entire modeling process: fit() and predict() apply to the preprocessing steps in addition to the actual model fit

Two ways workflows handle levels better than base R:

• Enforces that new levels are not allowed at prediction time (this is an optional check that can be turned off)

• Restores missing levels that were present at fit time, but happen to be missing at prediction time (like, if your “new” data just doesn’t have an instance of that level)

A model workflow

tree_spec <-
  decision_tree() %>%
  set_mode("classification")

tree_spec %>%
  fit(forested ~ ., data = forested_train)
#> parsnip model object
#>
#> n= 5685
#>
#> node), split, n, loss, yval, (yprob)
#>       * denotes terminal node
#>
#>  1) root 5685 2550 Yes (0.55145119 0.44854881)
#>    2) land_type=Tree 3064  300 Yes (0.90208877 0.09791123) *
#>    3) land_type=Barren,Non-tree vegetation 2621  371 No (0.14154903 0.85845097)
#>      6) temp_annual_max< 13.395 347  153 Yes (0.55907781 0.44092219)
#>       12) tree_no_tree=Tree 92    6 Yes (0.93478261 0.06521739) *
#>       13) tree_no_tree=No tree 255  108 No (0.42352941 0.57647059) *
#>      7) temp_annual_max>=13.395 2274  177 No (0.07783641 0.92216359) *

A model workflow

tree_spec <-
  decision_tree() %>%
  set_mode("classification")

workflow() %>%
  add_formula(forested ~ .) %>%
  add_model(tree_spec) %>%
  fit(data = forested_train)
#> ══ Workflow [trained] ════════════════════════════════════════════════
#> Preprocessor: Formula
#> Model: decision_tree()
#>
#> ── Preprocessor ──────────────────────────────────────────────────────
#> forested ~ .
#>
#> ── Model ─────────────────────────────────────────────────────────────
#> n= 5685
#>
#> node), split, n, loss, yval, (yprob)
#>       * denotes terminal node
#>
#>  1) root 5685 2550 Yes (0.55145119 0.44854881)
#>    2) land_type=Tree 3064  300 Yes (0.90208877 0.09791123) *
#>    3) land_type=Barren,Non-tree vegetation 2621  371 No (0.14154903 0.85845097)
#>      6) temp_annual_max< 13.395 347  153 Yes (0.55907781 0.44092219)
#>       12) tree_no_tree=Tree 92    6 Yes (0.93478261 0.06521739) *
#>       13) tree_no_tree=No tree 255  108 No (0.42352941 0.57647059) *
#>      7) temp_annual_max>=13.395 2274  177 No (0.07783641 0.92216359) *

A model workflow

tree_spec <-
  decision_tree() %>%
  set_mode("classification")

workflow(forested ~ ., tree_spec) %>%
  fit(data = forested_train)
#> ══ Workflow [trained] ════════════════════════════════════════════════
#> Preprocessor: Formula
#> Model: decision_tree()
#>
#> ── Preprocessor ──────────────────────────────────────────────────────
#> forested ~ .
#>
#> ── Model ─────────────────────────────────────────────────────────────
#> n= 5685
#>
#> node), split, n, loss, yval, (yprob)
#>       * denotes terminal node
#>
#>  1) root 5685 2550 Yes (0.55145119 0.44854881)
#>    2) land_type=Tree 3064  300 Yes (0.90208877 0.09791123) *
#>    3) land_type=Barren,Non-tree vegetation 2621  371 No (0.14154903 0.85845097)
#>      6) temp_annual_max< 13.395 347  153 Yes (0.55907781 0.44092219)
#>       12) tree_no_tree=Tree 92    6 Yes (0.93478261 0.06521739) *
#>       13) tree_no_tree=No tree 255  108 No (0.42352941 0.57647059) *
#>      7) temp_annual_max>=13.395 2274  177 No (0.07783641 0.92216359) *

Your turn

Run the tree_wflow chunk in your .qmd.

Edit this code to make a workflow with your own model of choice.

10:00

Predict with your model

How do you use your new tree_fit model?

tree_spec <-
  decision_tree() %>%
  set_mode("classification")

tree_fit <-
  workflow(forested ~ ., tree_spec) %>%
  fit(data = forested_train)

Your turn

Run:

predict(tree_fit, new_data = forested_test)

What do you notice about the structure of the result?

03:00

Your turn

Run:

augment(tree_fit, new_data = forested_test)

How does the output compare to the output from predict()?

05:00

The tidymodels prediction guarantee!

• The predictions will always be inside a tibble
• The column names and types are unsurprising and predictable
• The number of rows in new_data and the output are the same

Understand your model

How do you understand your new tree_fit model?

Understand your model

How do you understand your new tree_fit model?

library(rpart.plot)
tree_fit %>%
  extract_fit_engine() %>%
  rpart.plot(roundint = FALSE)

You can extract_*() several components of your fitted workflow.

⚠️ Never predict() with any extracted components!

roundint = FALSE is only to quiet a warning

Understand your model

How do you understand your new tree_fit model?

You can use your fitted workflow for model and/or prediction explanations:

• overall variable importance, such as with the vip package

• flexible model explainers, such as with the DALEXtra package

Learn more at https://www.tmwr.org/explain.html

Your turn

Extract the model engine object from your fitted workflow and check it out.

05:00

Afterward, ask what kind of object people got from the extraction, and what they did with it (e.g. give it to summary(), plot(), broom::tidy() ). Live code along

The whole game - status update

Stress that fitting a model on the entire training set was only for illustrating how to fit a model

Evaluate the model

Open Worksheet 3 📄

Looking at predictions

augment(forested_fit, new_data = forested_train)
#> # A tibble: 5,685 × 22
#>    .pred_class .pred_Yes .pred_No forested  year elevation eastness northness
#>    <fct>           <dbl>    <dbl> <fct>    <dbl>     <dbl>    <dbl>     <dbl>
#>  1 No             0.0114   0.989  No        2016       464       -5       -99
#>  2 Yes            0.636    0.364  Yes       2016       166       92        37
#>  3 No             0.0114   0.989  No        2016       644      -85       -52
#>  4 Yes            0.977    0.0226 Yes       2014      1285        4        99
#>  5 Yes            0.977    0.0226 Yes       2013       822       87        48
#>  6 Yes            0.808    0.192  Yes       2017         3        6       -99
#>  7 Yes            0.977    0.0226 Yes       2014      2041      -95        28
#>  8 Yes            0.977    0.0226 Yes       2015      1009       -8        99
#>  9 No             0.0114   0.989  No        2017       436      -98        19
#> 10 No             0.0114   0.989  No        2018       775       63        76
#> # ℹ 5,675 more rows
#> # ℹ 14 more variables: roughness <dbl>, tree_no_tree <fct>, dew_temp <dbl>,
#> #   precip_annual <dbl>, temp_annual_mean <dbl>, temp_annual_min <dbl>,
#> #   temp_annual_max <dbl>, temp_january_min <dbl>, vapor_min <dbl>,
#> #   vapor_max <dbl>, canopy_cover <dbl>, lon <dbl>, lat <dbl>, land_type <fct>

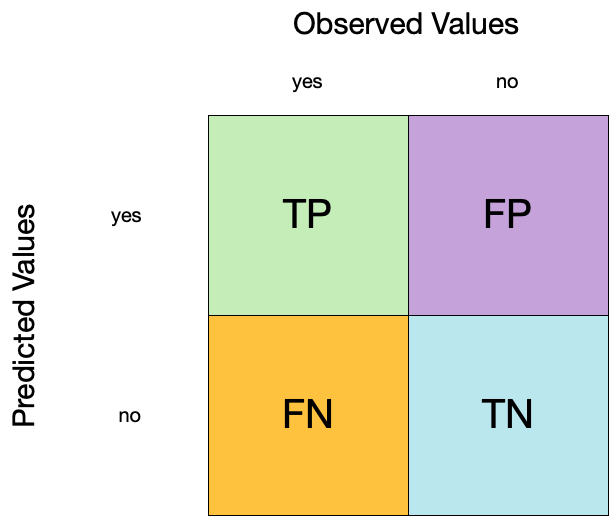

Confusion matrix

Confusion matrix

augment(forested_fit, new_data = forested_train) %>%
  conf_mat(truth = forested, estimate = .pred_class)
#>           Truth
#> Prediction  Yes   No
#>        Yes 2991  176
#>        No   144 2374

Confusion matrix

augment(forested_fit, new_data = forested_train) %>%
  conf_mat(truth = forested, estimate = .pred_class) %>%
  autoplot(type = "heatmap")

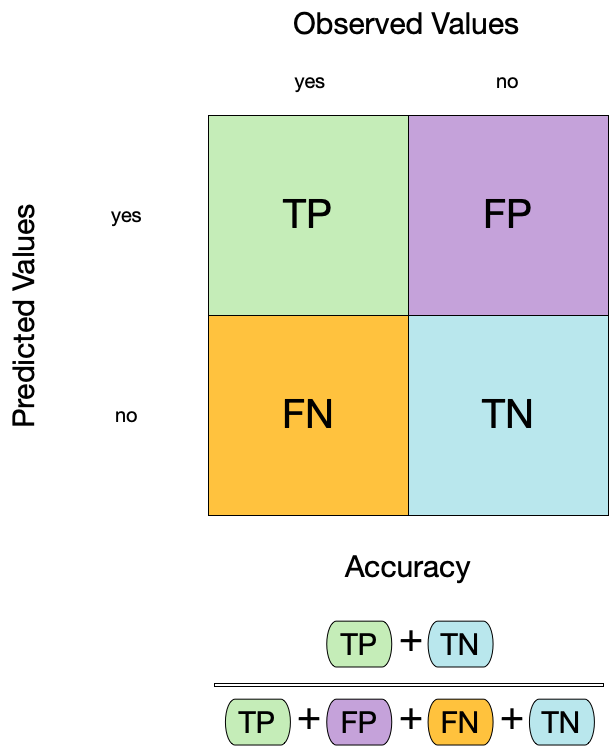

Metrics for model performance

augment(forested_fit, new_data = forested_train) %>%
  accuracy(truth = forested, estimate = .pred_class)
#> # A tibble: 1 × 3
#>   .metric  .estimator .estimate
#>   <chr>    <chr>          <dbl>
#> 1 accuracy binary         0.944

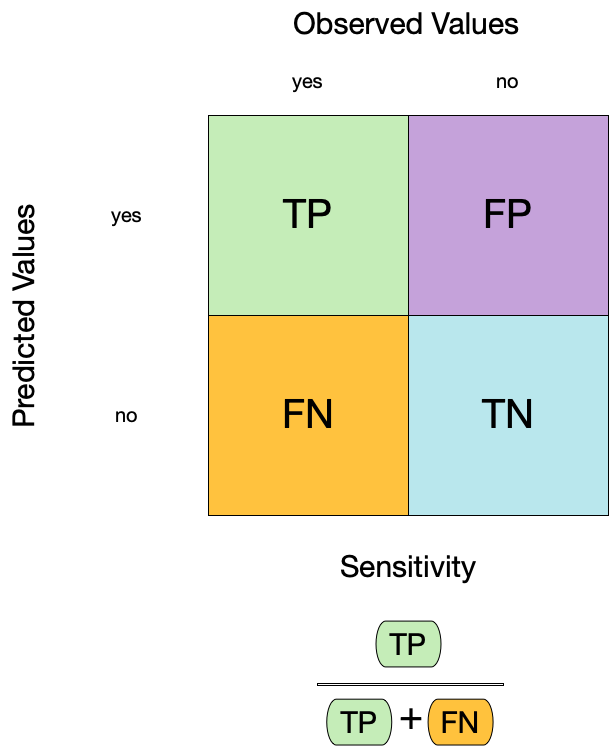

Metrics for model performance

augment(forested_fit, new_data = forested_train) %>%
  sensitivity(truth = forested, estimate = .pred_class)
#> # A tibble: 1 × 3
#>   .metric     .estimator .estimate
#>   <chr>       <chr>          <dbl>
#> 1 sensitivity binary         0.954

Metrics for model performance

augment(forested_fit, new_data = forested_train) %>%
  sensitivity(truth = forested, estimate = .pred_class)
#> # A tibble: 1 × 3
#>   .metric     .estimator .estimate
#>   <chr>       <chr>          <dbl>
#> 1 sensitivity binary         0.954

augment(forested_fit, new_data = forested_train) %>%

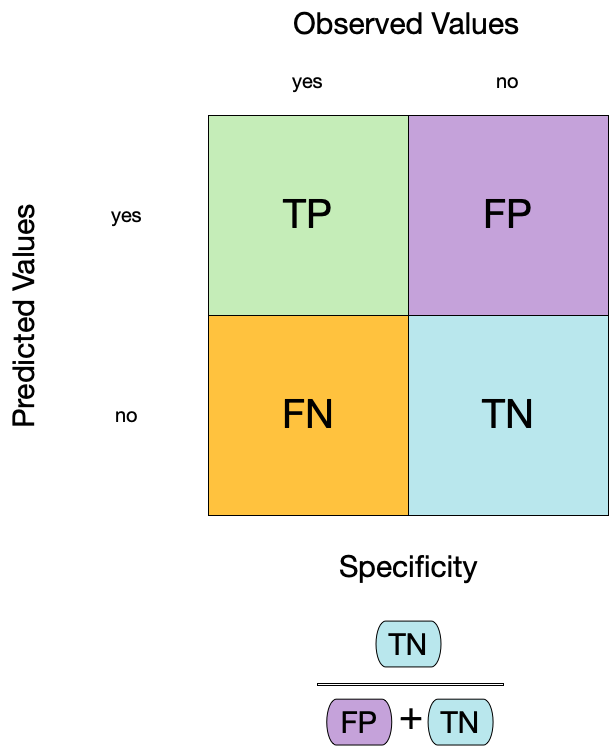

  specificity(truth = forested, estimate = .pred_class)
#> # A tibble: 1 × 3
#>   .metric     .estimator .estimate
#>   <chr>       <chr>          <dbl>
#> 1 specificity binary         0.931

Metrics for model performance

We can use metric_set() to combine multiple calculations into one

forested_metrics <- metric_set(accuracy, specificity, sensitivity)

augment(forested_fit, new_data = forested_train) %>%
  forested_metrics(truth = forested, estimate = .pred_class)
#> # A tibble: 3 × 3
#>   .metric     .estimator .estimate
#>   <chr>       <chr>          <dbl>
#> 1 accuracy    binary         0.944
#> 2 specificity binary         0.931
#> 3 sensitivity binary         0.954

Metrics for model performance

Metrics and metric sets work with grouped data frames!

augment(forested_fit, new_data = forested_train) %>%
  group_by(tree_no_tree) %>%
  accuracy(truth = forested, estimate = .pred_class)
#> # A tibble: 2 × 4
#>   tree_no_tree .metric  .estimator .estimate
#>   <fct>        <chr>    <chr>          <dbl>
#> 1 Tree         accuracy binary         0.946
#> 2 No tree      accuracy binary         0.941

Your turn

Apply the forested_metrics metric set to augment()
output grouped by tree_no_tree.

Do any metrics differ substantially between groups?

10:00

The specificity for "Tree" is a good bit lower than it is for "No tree".

Specificity is the proportion of negatives that are correctly identified as negatives. “Negative” is the non-event level of the outcome, i.e. “non-forested.” So, when this index classifies the plot as having a tree, the model does not do well at correctly identifying the plot as non-forested when it is indeed non-forested.

Two class data

These metrics assume that we know the threshold for converting “soft” probability predictions into “hard” class predictions.

Is a 50% threshold good?

What happens if we say that we need to be 80% sure to declare an event?

• sensitivity ⬇️, specificity ⬆️

What happens for a 20% threshold?

• sensitivity ⬆️, specificity ⬇️

Varying the threshold

ROC curves

For an ROC (receiver operator characteristic) curve, we plot

• the false positive rate (1 - specificity) on the x-axis
• the true positive rate (sensitivity) on the y-axis

with sensitivity and specificity calculated at all possible thresholds.

ROC curves are insensitive to class imbalance.

ROC curves

We can use the area under the ROC curve as a classification metric:

• ROC AUC = 1 💯
• ROC AUC = 1/2 😢

ROC curves

# Assumes _first_ factor level is event; there are options to change that
augment(forested_fit, new_data = forested_train) %>%
  roc_curve(truth = forested, .pred_Yes) %>%
  slice(1, 20, 50)
#> # A tibble: 3 × 3
#>   .threshold specificity sensitivity
#>        <dbl>       <dbl>       <dbl>
#> 1   -Inf           0           1
#> 2      0.235       0.885       0.972
#> 3      0.909       0.969       0.826

augment(forested_fit, new_data = forested_train) %>%
  roc_auc(truth = forested, .pred_Yes)
#> # A tibble: 1 × 3
#>   .metric .estimator .estimate
#>   <chr>   <chr>          <dbl>
#> 1 roc_auc binary         0.975

ROC curve plot

augment(forested_fit,
        new_data = forested_train) %>%
  roc_curve(truth = forested,
            .pred_Yes) %>%
  autoplot()

Your turn

Compute and plot an ROC curve for your current model.

What data are being used for this ROC curve plot?

10:00

Brier score

What if we don’t turn predicted probabilities into class predictions?

The Brier score is analogous to the mean squared error in regression models:

\[ Brier_{class} = \frac{1}{N}\sum_{i=1}^N\sum_{k=1}^C (y_{ik} - \hat{p}_{ik})^2 \]

Brier score

augment(forested_fit, new_data = forested_train) %>%
  brier_class(truth = forested, .pred_Yes)
#> # A tibble: 1 × 3
#>   .metric     .estimator .estimate
#>   <chr>       <chr>          <dbl>
#> 1 brier_class binary        0.0469

Smaller values are better, for binary classification the “bad model threshold” is about 0.25.

Separation vs calibration

The ROC captures separation.

The Brier score captures calibration.

• Good separation: the densities don’t overlap.
• Good calibration: the calibration line follows the diagonal.

Calibration plot: We bin observations according to predicted probability. In the bin for 20%-30% predicted prob, we should see an event rate of ~25% if the model is well-calibrated.

⚠️ DANGERS OF OVERFITTING ⚠️

Dangers of overfitting

Dangers of overfitting ⚠️

Dangers of overfitting ⚠️

forested_fit %>%
  augment(forested_train)
#> # A tibble: 5,685 × 22
#>    .pred_class .pred_Yes .pred_No forested  year elevation eastness northness
#>    <fct>           <dbl>    <dbl> <fct>    <dbl>     <dbl>    <dbl>     <dbl>
#>  1 No             0.0114   0.989  No        2016       464       -5       -99
#>  2 Yes            0.636    0.364  Yes       2016       166       92        37
#>  3 No             0.0114   0.989  No        2016       644      -85       -52
#>  4 Yes            0.977    0.0226 Yes       2014      1285        4        99
#>  5 Yes            0.977    0.0226 Yes       2013       822       87        48
#>  6 Yes            0.808    0.192  Yes       2017         3        6       -99
#>  7 Yes            0.977    0.0226 Yes       2014      2041      -95        28
#>  8 Yes            0.977    0.0226 Yes       2015      1009       -8        99
#>  9 No             0.0114   0.989  No        2017       436      -98        19
#> 10 No             0.0114   0.989  No        2018       775       63        76
#> # ℹ 5,675 more rows
#> # ℹ 14 more variables: roughness <dbl>, tree_no_tree <fct>, dew_temp <dbl>,
#> #   precip_annual <dbl>, temp_annual_mean <dbl>, temp_annual_min <dbl>,
#> #   temp_annual_max <dbl>, temp_january_min <dbl>, vapor_min <dbl>,
#> #   vapor_max <dbl>, canopy_cover <dbl>, lon <dbl>, lat <dbl>, land_type <fct>

We call this “resubstitution” or “repredicting the training set”

Dangers of overfitting ⚠️

forested_fit %>%
  augment(forested_train) %>%
  accuracy(forested, .pred_class)
#> # A tibble: 1 × 3
#>   .metric  .estimator .estimate
#>   <chr>    <chr>          <dbl>
#> 1 accuracy binary         0.944

We call this a “resubstitution estimate”

Dangers of overfitting ⚠️

forested_fit %>%
  augment(forested_train) %>%
  accuracy(forested, .pred_class)
#> # A tibble: 1 × 3
#>   .metric  .estimator .estimate
#>   <chr>    <chr>          <dbl>
#> 1 accuracy binary         0.944

Dangers of overfitting ⚠️

forested_fit %>%
  augment(forested_train) %>%
  accuracy(forested, .pred_class)
#> # A tibble: 1 × 3
#>   .metric  .estimator .estimate
#>   <chr>    <chr>          <dbl>
#> 1 accuracy binary         0.944

forested_fit %>%
  augment(forested_test) %>%
  accuracy(forested, .pred_class)
#> # A tibble: 1 × 3
#>   .metric  .estimator .estimate
#>   <chr>    <chr>          <dbl>
#> 1 accuracy binary         0.886

⚠️ Remember that we’re demonstrating overfitting

⚠️ Don’t use the test set until the end of your modeling analysis

Your turn

Use augment() and a metric function to compute a classification metric like brier_class().

Compute the metrics for both training and testing data to demonstrate overfitting!

Notice the evidence of overfitting! ⚠️

10:00

Dangers of overfitting ⚠️

forested_fit %>%
  augment(forested_train) %>%
  brier_class(forested, .pred_Yes)
#> # A tibble: 1 × 3
#>   .metric     .estimator .estimate
#>   <chr>       <chr>          <dbl>
#> 1 brier_class binary        0.0469

forested_fit %>%
  augment(forested_test) %>%
  brier_class(forested, .pred_Yes)
#> # A tibble: 1 × 3
#>   .metric     .estimator .estimate
#>   <chr>       <chr>          <dbl>
#> 1 brier_class binary        0.0888

What if we want to compare more models?

And/or more model configurations?

And we want to understand if these are important differences?

The testing data are precious 💎

How can we use the training data to compare and evaluate different models? 🤔

Cross-validation

Cross-validation

Your turn

If we use 10 folds, what percent of the training data

• ends up in analysis
• ends up in assessment

for each fold?

05:00

Cross-validation

vfold_cv(forested_train) # v = 10 is default
#> #  10-fold cross-validation
#> # A tibble: 10 × 2
#>    splits             id
#>    <list>             <chr>
#>  1 <split [5116/569]> Fold01
#>  2 <split [5116/569]> Fold02
#>  3 <split [5116/569]> Fold03
#>  4 <split [5116/569]> Fold04
#>  5 <split [5116/569]> Fold05
#>  6 <split [5117/568]> Fold06
#>  7 <split [5117/568]> Fold07
#>  8 <split [5117/568]> Fold08
#>  9 <split [5117/568]> Fold09
#> 10 <split [5117/568]> Fold10

Cross-validation

What is in this?

forested_folds <- vfold_cv(forested_train)
forested_folds$splits[1:3]
#> [[1]]
#> <Analysis/Assess/Total>
#> <5116/569/5685>
#>
#> [[2]]
#> <Analysis/Assess/Total>
#> <5116/569/5685>
#>
#> [[3]]
#> <Analysis/Assess/Total>
#> <5116/569/5685>

Talk about a list column, storing non-atomic types in dataframe

Cross-validation

vfold_cv(forested_train, v = 5)
#> #  5-fold cross-validation
#> # A tibble: 5 × 2
#>   splits              id
#>   <list>              <chr>
#> 1 <split [4548/1137]> Fold1
#> 2 <split [4548/1137]> Fold2
#> 3 <split [4548/1137]> Fold3
#> 4 <split [4548/1137]> Fold4
#> 5 <split [4548/1137]> Fold5

Cross-validation

We’ll use this setup:

set.seed(123)
forested_folds <- vfold_cv(forested_train, v = 10)
forested_folds
#> #  10-fold cross-validation
#> # A tibble: 10 × 2
#>    splits             id
#>    <list>             <chr>
#>  1 <split [5116/569]> Fold01
#>  2 <split [5116/569]> Fold02
#>  3 <split [5116/569]> Fold03
#>  4 <split [5116/569]> Fold04
#>  5 <split [5116/569]> Fold05
#>  6 <split [5117/568]> Fold06
#>  7 <split [5117/568]> Fold07
#>  8 <split [5117/568]> Fold08
#>  9 <split [5117/568]> Fold09
#> 10 <split [5117/568]> Fold10

Set the seed when creating resamples

We are equipped with metrics and resamples!

Fit our model to the resamples

forested_res <- fit_resamples(forested_wflow, forested_folds)
forested_res
#> # Resampling results
#> # 10-fold cross-validation
#> # A tibble: 10 × 4
#>    splits             id     .metrics         .notes
#>    <list>             <chr>  <list>           <list>
#>  1 <split [5116/569]> Fold01 <tibble [3 × 4]> <tibble [0 × 3]>
#>  2 <split [5116/569]> Fold02 <tibble [3 × 4]> <tibble [0 × 3]>
#>  3 <split [5116/569]> Fold03 <tibble [3 × 4]> <tibble [0 × 3]>
#>  4 <split [5116/569]> Fold04 <tibble [3 × 4]> <tibble [0 × 3]>
#>  5 <split [5116/569]> Fold05 <tibble [3 × 4]> <tibble [0 × 3]>
#>  6 <split [5117/568]> Fold06 <tibble [3 × 4]> <tibble [0 × 3]>
#>  7 <split [5117/568]> Fold07 <tibble [3 × 4]> <tibble [0 × 3]>
#>  8 <split [5117/568]> Fold08 <tibble [3 × 4]> <tibble [0 × 3]>
#>  9 <split [5117/568]> Fold09 <tibble [3 × 4]> <tibble [0 × 3]>
#> 10 <split [5117/568]> Fold10 <tibble [3 × 4]> <tibble [0 × 3]>

Evaluating model performance

forested_res %>%
  collect_metrics()
#> # A tibble: 3 × 6
#>   .metric     .estimator   mean     n std_err .config
#>   <chr>       <chr>       <dbl> <int>   <dbl> <chr>
#> 1 accuracy    binary     0.894     10 0.00562 Preprocessor1_Model1
#> 2 brier_class binary     0.0817    10 0.00434 Preprocessor1_Model1
#> 3 roc_auc     binary     0.951     10 0.00378 Preprocessor1_Model1

collect_metrics() is one of a suite of collect_*() functions that can be used to work with columns of tuning results. Most columns in a tuning result prefixed with . have a corresponding collect_*() function with options for common summaries.

We can reliably measure performance using only the training data 🎉

Comparing metrics

How do the metrics from resampling compare to the metrics from training and testing?

forested_res %>%
  collect_metrics() %>%
  select(.metric, mean, n)
#> # A tibble: 3 × 3
#>   .metric       mean     n
#>   <chr>        <dbl> <int>
#> 1 accuracy    0.894     10
#> 2 brier_class 0.0817    10
#> 3 roc_auc     0.951     10

The ROC AUC previously was

• 0.97 for the training set
• 0.95 for test set

Remember that:

⚠️ the training set gives you overly optimistic metrics

⚠️ the test set is precious

Evaluating model performance

# Save the assessment set results
ctrl_forested <- control_resamples(save_pred = TRUE)
forested_res <- fit_resamples(forested_wflow, forested_folds, control = ctrl_forested)

forested_res
#> # Resampling results
#> # 10-fold cross-validation
#> # A tibble: 10 × 5
#>    splits             id     .metrics         .notes           .predictions
#>    <list>             <chr>  <list>           <list>           <list>
#>  1 <split [5116/569]> Fold01 <tibble [3 × 4]> <tibble [0 × 3]> <tibble>
#>  2 <split [5116/569]> Fold02 <tibble [3 × 4]> <tibble [0 × 3]> <tibble>
#>  3 <split [5116/569]> Fold03 <tibble [3 × 4]> <tibble [0 × 3]> <tibble>
#>  4 <split [5116/569]> Fold04 <tibble [3 × 4]> <tibble [0 × 3]> <tibble>
#>  5 <split [5116/569]> Fold05 <tibble [3 × 4]> <tibble [0 × 3]> <tibble>
#>  6 <split [5117/568]> Fold06 <tibble [3 × 4]> <tibble [0 × 3]> <tibble>
#>  7 <split [5117/568]> Fold07 <tibble [3 × 4]> <tibble [0 × 3]> <tibble>
#>  8 <split [5117/568]> Fold08 <tibble [3 × 4]> <tibble [0 × 3]> <tibble>
#>  9 <split [5117/568]> Fold09 <tibble [3 × 4]> <tibble [0 × 3]> <tibble>
#> 10 <split [5117/568]> Fold10 <tibble [3 × 4]> <tibble [0 × 3]> <tibble>

Evaluating model performance

# Save the assessment set results
forested_preds <- collect_predictions(forested_res)
forested_preds
#> # A tibble: 5,685 × 7
#>    .pred_class .pred_Yes .pred_No id      .row forested .config
#>    <fct>           <dbl>    <dbl> <chr>  <int> <fct>    <chr>
#>  1 Yes           0.5       0.5    Fold01     2 Yes      Preprocessor1_Model1
#>  2 Yes           0.982     0.0178 Fold01     5 Yes      Preprocessor1_Model1
#>  3 No            0.00790   0.992  Fold01     9 No       Preprocessor1_Model1
#>  4 No            0.4       0.6    Fold01    14 No       Preprocessor1_Model1
#>  5 Yes           0.870     0.130  Fold01    18 Yes      Preprocessor1_Model1
#>  6 Yes           0.982     0.0178 Fold01    59 Yes      Preprocessor1_Model1
#>  7 No            0.00790   0.992  Fold01    67 No       Preprocessor1_Model1
#>  8 Yes           0.982     0.0178 Fold01    89 Yes      Preprocessor1_Model1
#>  9 No            0.00790   0.992  Fold01    94 No       Preprocessor1_Model1
#> 10 Yes           0.982     0.0178 Fold01   111 Yes      Preprocessor1_Model1
#> # ℹ 5,675 more rows

Evaluating model performance

forested_preds %>%
  group_by(id) %>%
  forested_metrics(truth = forested, estimate = .pred_class)
#> # A tibble: 30 × 4
#>    id     .metric  .estimator .estimate
#>    <chr>  <chr>    <chr>          <dbl>
#>  1 Fold01 accuracy binary         0.896
#>  2 Fold02 accuracy binary         0.859
#>  3 Fold03 accuracy binary         0.868
#>  4 Fold04 accuracy binary         0.921
#>  5 Fold05 accuracy binary         0.900
#>  6 Fold06 accuracy binary         0.891
#>  7 Fold07 accuracy binary         0.896
#>  8 Fold08 accuracy binary         0.903
#>  9 Fold09 accuracy binary         0.896
#> 10 Fold10 accuracy binary         0.905
#> # ℹ 20 more rows

Where are the fitted models?

forested_res
#> # Resampling results
#> # 10-fold cross-validation
#> # A tibble: 10 × 5
#>    splits             id     .metrics         .notes           .predictions
#>    <list>             <chr>  <list>           <list>           <list>
#>  1 <split [5116/569]> Fold01 <tibble [3 × 4]> <tibble [0 × 3]> <tibble>
#>  2 <split [5116/569]> Fold02 <tibble [3 × 4]> <tibble [0 × 3]> <tibble>
#>  3 <split [5116/569]> Fold03 <tibble [3 × 4]> <tibble [0 × 3]> <tibble>
#>  4 <split [5116/569]> Fold04 <tibble [3 × 4]> <tibble [0 × 3]> <tibble>
#>  5 <split [5116/569]> Fold05 <tibble [3 × 4]> <tibble [0 × 3]> <tibble>
#>  6 <split [5117/568]> Fold06 <tibble [3 × 4]> <tibble [0 × 3]> <tibble>
#>  7 <split [5117/568]> Fold07 <tibble [3 × 4]> <tibble [0 × 3]> <tibble>
#>  8 <split [5117/568]> Fold08 <tibble [3 × 4]> <tibble [0 × 3]> <tibble>
#>  9 <split [5117/568]> Fold09 <tibble [3 × 4]> <tibble [0 × 3]> <tibble>
#> 10 <split [5117/568]> Fold10 <tibble [3 × 4]> <tibble [0 × 3]> <tibble>

🗑️

Alternate resampling schemes

Bootstrapping

Bootstrapping

set.seed(3214)
bootstraps(forested_train)
#> # Bootstrap sampling
#> # A tibble: 25 × 2
#>    splits              id
#>    <list>              <chr>
#>  1 <split [5685/2075]> Bootstrap01
#>  2 <split [5685/2093]> Bootstrap02
#>  3 <split [5685/2129]> Bootstrap03
#>  4 <split [5685/2093]> Bootstrap04
#>  5 <split [5685/2111]> Bootstrap05
#>  6 <split [5685/2105]> Bootstrap06
#>  7 <split [5685/2139]> Bootstrap07
#>  8 <split [5685/2079]> Bootstrap08
#>  9 <split [5685/2113]> Bootstrap09
#> 10 <split [5685/2101]> Bootstrap10
#> # ℹ 15 more rows

The whole game - status update

Your turn

Create:

• Monte Carlo Cross-Validation sets
• validation set

(use the reference guide to find the functions)

Don’t forget to set a seed when you resample!

10:00

Monte Carlo Cross-Validation

set.seed(322)
mc_cv(forested_train, times = 10)
#> # Monte Carlo cross-validation (0.75/0.25) with 10 resamples
#> # A tibble: 10 × 2
#>    splits              id
#>    <list>              <chr>
#>  1 <split [4263/1422]> Resample01
#>  2 <split [4263/1422]> Resample02
#>  3 <split [4263/1422]> Resample03
#>  4 <split [4263/1422]> Resample04
#>  5 <split [4263/1422]> Resample05
#>  6 <split [4263/1422]> Resample06
#>  7 <split [4263/1422]> Resample07
#>  8 <split [4263/1422]> Resample08
#>  9 <split [4263/1422]> Resample09
#> 10 <split [4263/1422]> Resample10

Repeated random sub-sampling validation: random train/test splits repeated many times. You have a lot of data and k-fold is too slow) You control: How much of the data goes to training vs testing? How many random splits you generate.

Validation set

set.seed(853)
forested_val_split <- initial_validation_split(forested)
validation_set(forested_val_split)
#> # A tibble: 1 × 2
#>   splits              id
#>   <list>              <chr>
#> 1 <split [4264/1421]> validation

A validation set is just another type of resample

creating a single train/validation split and extracting the validation data for evaluation This randomly splits your dataset forested into: Training set (default = 3/4 or 75% of the data) Validation set (default = 1/4 or 25% of the data) it’s similar to initial_split(), but intended specifically for validation workflows often used when you are holding out a validation set to tune models before testing on a final test set

Decision tree 🌳

Random forest 🌳🌲🌴🌵🌴🌳🌳🌴🌲🌵🌴🌲🌳🌴🌳🌵🌵🌴🌲🌲🌳🌴🌳🌴🌲🌴🌵🌴🌲🌴🌵🌲🌵🌴🌲🌳🌴🌵🌳🌴🌳

Random forest 🌳🌲🌴🌵🌳🌳🌴🌲🌵🌴🌳🌵

• Ensemble many decision tree models

• All the trees vote! 🗳️

• Bootstrap aggregating + random predictor sampling

• Often works well without tuning hyperparameters (more on this later!), as long as there are enough trees

Bootstrap Aggregating (“Bagging”) - Bootstrap = Randomly sample your training data with replacement. - Aggregating = Build many trees on different bootstrapped samples and average (for regression) or vote (for classification).

Create a random forest model

rf_spec <- rand_forest(trees = 1000, mode = "classification")
rf_spec
#> Random Forest Model Specification (classification)
#>
#> Main Arguments:
#>   trees = 1000
#>
#> Computational engine: ranger

Create a random forest model

rf_wflow <- workflow(forested ~ ., rf_spec)
rf_wflow
#> ══ Workflow ══════════════════════════════════════════════════════════
#> Preprocessor: Formula
#> Model: rand_forest()
#>
#> ── Preprocessor ──────────────────────────────────────────────────────
#> forested ~ .
#>
#> ── Model ─────────────────────────────────────────────────────────────
#> Random Forest Model Specification (classification)
#>
#> Main Arguments:
#>   trees = 1000
#>
#> Computational engine: ranger

Your turn

Use fit_resamples() and rf_wflow to:

• keep predictions
• compute metrics

10:00

Evaluating model performance

ctrl_forested <- control_resamples(save_pred = TRUE)

# Random forest uses random numbers so set the seed first

set.seed(2)
rf_res <- fit_resamples(rf_wflow, forested_folds, control = ctrl_forested)
collect_metrics(rf_res)
#> # A tibble: 3 × 6
#>   .metric     .estimator   mean     n std_err .config
#>   <chr>       <chr>       <dbl> <int>   <dbl> <chr>
#> 1 accuracy    binary     0.918     10 0.00585 Preprocessor1_Model1
#> 2 brier_class binary     0.0618    10 0.00337 Preprocessor1_Model1
#> 3 roc_auc     binary     0.972     10 0.00309 Preprocessor1_Model1

The whole game - status update

The final fit

Suppose that we are happy with our random forest model.

Let’s fit the model on the training set and verify our performance using the test set.

We’ve seen fit() and predict() (+ augment()) but there is a shortcut:

# forested_split has train + test info
final_fit <- last_fit(rf_wflow, forested_split)

final_fit
#> # Resampling results
#> # Manual resampling
#> # A tibble: 1 × 6
#>   splits              id               .metrics .notes   .predictions .workflow
#>   <list>              <chr>            <list>   <list>   <list>       <list>
#> 1 <split [5685/1422]> train/test split <tibble> <tibble> <tibble>     <workflow>

What is in final_fit?

collect_metrics(final_fit)
#> # A tibble: 3 × 4
#>   .metric     .estimator .estimate .config
#>   <chr>       <chr>          <dbl> <chr>
#> 1 accuracy    binary        0.911  Preprocessor1_Model1
#> 2 roc_auc     binary        0.970  Preprocessor1_Model1
#> 3 brier_class binary        0.0652 Preprocessor1_Model1

These are metrics computed with the test set

What is in final_fit?

collect_predictions(final_fit)
#> # A tibble: 1,422 × 7
#>    .pred_class .pred_Yes .pred_No id                .row forested .config
#>    <fct>           <dbl>    <dbl> <chr>            <int> <fct>    <chr>
#>  1 Yes             0.822   0.178  train/test split     3 No       Preprocessor1…
#>  2 Yes             0.707   0.293  train/test split     4 Yes      Preprocessor1…
#>  3 No              0.270   0.730  train/test split     7 Yes      Preprocessor1…
#>  4 Yes             0.568   0.432  train/test split     8 Yes      Preprocessor1…
#>  5 Yes             0.554   0.446  train/test split    10 Yes      Preprocessor1…
#>  6 Yes             0.970   0.0297 train/test split    11 Yes      Preprocessor1…
#>  7 Yes             0.963   0.0367 train/test split    12 Yes      Preprocessor1…
#>  8 Yes             0.947   0.0528 train/test split    14 Yes      Preprocessor1…
#>  9 Yes             0.943   0.0573 train/test split    15 Yes      Preprocessor1…
#> 10 Yes             0.977   0.0227 train/test split    19 Yes      Preprocessor1…
#> # ℹ 1,412 more rows

What is in final_fit?

extract_workflow(final_fit)
#> ══ Workflow [trained] ════════════════════════════════════════════════
#> Preprocessor: Formula
#> Model: rand_forest()
#>
#> ── Preprocessor ──────────────────────────────────────────────────────
#> forested ~ .
#>
#> ── Model ─────────────────────────────────────────────────────────────
#> Ranger result
#>
#> Call:
#>  ranger::ranger(x = maybe_data_frame(x), y = y, num.trees = ~1000,      num.threads = 1, verbose = FALSE, seed = sample.int(10^5,          1), probability = TRUE)
#>
#> Type:                             Probability estimation
#> Number of trees:                  1000
#> Sample size:                      5685
#> Number of independent variables:  18
#> Mtry:                             4
#> Target node size:                 10
#> Variable importance mode:         none
#> Splitrule:                        gini
#> OOB prediction error (Brier s.):  0.06153207

Use this for prediction on new data, like for deploying

Pulls out the trained workflow from final_fit. - This workflow includes: - The preprocessing recipe (if any) - The trained model (your random forest) 0 Any settings or structure you built inside rf_wflow This is useful because after last_fit(), you often want to save, inspect, or refit the trained model without re-training everything.

The whole game

Tuning Models

Open Worksheet 4 📄

Tuning parameters

Some model or preprocessing parameters cannot be estimated directly from the data.

Some examples:

• Tree depth in decision trees
• Number of neighbors in a K-nearest neighbor model

Optimize tuning parameters

• Try different values and measure their performance.

• Find good values for these parameters.

• Once the value(s) of the parameter(s) are determined, a model can be finalized by fitting the model to the entire training set.

Optimize tuning parameters

The main two strategies for optimization are:

• Grid search 💠 which tests a pre-defined set of candidate values

• Iterative search 🌀 which suggests/estimates new values of candidate parameters to evaluate

Specifying tuning parameters

Let’s take our previous random forest workflow and tag for tuning the minimum number of data points in each node:

rf_spec <- rand_forest(min_n = tune()) %>%
  set_mode("classification")

rf_wflow <- workflow(forested ~ ., rf_spec)
rf_wflow
#> ══ Workflow ══════════════════════════════════════════════════════════
#> Preprocessor: Formula
#> Model: rand_forest()
#>
#> ── Preprocessor ──────────────────────────────────────────────────────
#> forested ~ .
#>
#> ── Model ─────────────────────────────────────────────────────────────
#> Random Forest Model Specification (classification)
#>
#> Main Arguments:
#>   min_n = tune()
#>
#> Computational engine: ranger

So you are telling tidymodels: “Don’t fix min_n (the minimum number of observations needed to make a split at a node) yet, treat it as a hyperparameter that I want to search for the best value during tuning.” min_n controls how deep or complex the trees can grow: - Smaller min_n → deeper trees → more complex models (potential overfitting) - Larger min_n → shallower trees → simpler models (maybe underfitting) - It’s a form of tree regularization. During hyperparameter tuning, tidymodels will try different values of min_n (like 2, 5, 10, 20, etc.) across resampling (like cross-validation). It chooses the best value based on performance (accuracy, ROC AUC, etc.).

Try out multiple values

tune_grid() works similar to fit_resamples() but covers multiple parameter values:

set.seed(22)
rf_res <- tune_grid(
  rf_wflow,
  forested_folds,
  grid = 5
)

you’re saying: use cross-validation to search for the best value of the tuning parameters. rf_wflow is your workflow that includes: - a random forest model - and a formula (like forested ~ .) forested_folds are your validation folds (cross-validation plan).
grid = 5 means: “Try 5 different values” for each tunable parameter

It will generate 5 different random values for min_n (because you set min_n = tune() earlier). - For each value: - Train models across all the folds - Evaluate performance (accuracy, ROC AUC, or other default metrics) - Save all results in rf_res. For each of the 5 grid points (i.e., each different min_n value): - Fit the model on 9 folds - Validate the model on 1 fold - Repeat for all folds - Aggregate performance metrics - Rank which min_n value worked best

Compare results

Inspecting results and selecting the best-performing hyperparameter(s):

show_best(rf_res)
#> # A tibble: 5 × 7
#>   min_n .metric .estimator  mean     n std_err .config
#>   <int> <chr>   <chr>      <dbl> <int>   <dbl> <chr>
#> 1    31 roc_auc binary     0.972    10 0.00304 Preprocessor1_Model2
#> 2    12 roc_auc binary     0.972    10 0.00317 Preprocessor1_Model4
#> 3    22 roc_auc binary     0.972    10 0.00313 Preprocessor1_Model5
#> 4    40 roc_auc binary     0.972    10 0.00303 Preprocessor1_Model1
#> 5     3 roc_auc binary     0.971    10 0.00306 Preprocessor1_Model3

best_parameter <- select_best(rf_res)
best_parameter
#> # A tibble: 1 × 2
#>   min_n .config
#>   <int> <chr>
#> 1    31 Preprocessor1_Model2

collect_metrics() and autoplot() are also available.

rf_res is the result of your tune_grid() — meaning: - It contains the performance results for each tuning parameter value tried (in your case, for different min_n values). - show_best(rf_res):

Displays the top-performing tuning results — ranked by your default or chosen metric (usually highest accuracy or ROC AUC).

select_best(rf_res) picks the best hyperparameter values found during tuning, so you can finalize and refit your model properly for deployment or final evaluation.

The final fit

rf_wflow <- finalize_workflow(rf_wflow, best_parameter)

final_fit <- last_fit(rf_wflow, forested_split)

collect_metrics(final_fit)
#> # A tibble: 3 × 4
#>   .metric     .estimator .estimate .config
#>   <chr>       <chr>          <dbl> <chr>
#> 1 accuracy    binary        0.909  Preprocessor1_Model1
#> 2 roc_auc     binary        0.970  Preprocessor1_Model1
#> 3 brier_class binary        0.0659 Preprocessor1_Model1

The ⁠finalize_*⁠ functions take a list or tibble of tuning parameter values and update objects with those values.

Your turn

Modify your model workflow to tune one or more parameters.

Use grid search to find the best parameter(s).

10:00

How can we compare multiple model workflows at once?

Evaluate a workflow set

wf_set <- workflow_set(list(forested ~ .), list(tree_spec, rf_spec))
wf_set
#> # A workflow set/tibble: 2 × 4
#>   wflow_id              info             option    result
#>   <chr>                 <list>           <list>    <list>
#> 1 formula_decision_tree <tibble [1 × 4]> <opts[0]> <list [0]>
#> 2 formula_rand_forest   <tibble [1 × 4]> <opts[0]> <list [0]>

Evaluate a workflow set

wf_set_fit <- wf_set %>%
  workflow_map("fit_resamples", resamples = forested_folds)
wf_set_fit
#> # A workflow set/tibble: 2 × 4
#>   wflow_id              info             option    result
#>   <chr>                 <list>           <list>    <list>
#> 1 formula_decision_tree <tibble [1 × 4]> <opts[1]> <rsmp[+]>
#> 2 formula_rand_forest   <tibble [1 × 4]> <opts[1]> <rsmp[+]>

Evaluate a workflow set

wf_set_fit %>%
  rank_results()
#> # A tibble: 6 × 9
#>   wflow_id         .config .metric   mean std_err     n preprocessor model  rank
#>   <chr>            <chr>   <chr>    <dbl>   <dbl> <int> <chr>        <chr> <int>
#> 1 formula_rand_fo… Prepro… accura… 0.919  0.00525    10 formula      rand…     1
#> 2 formula_rand_fo… Prepro… brier_… 0.0617 0.00338    10 formula      rand…     1
#> 3 formula_rand_fo… Prepro… roc_auc 0.972  0.00310    10 formula      rand…     1
#> 4 formula_decisio… Prepro… accura… 0.894  0.00562    10 formula      deci…     2
#> 5 formula_decisio… Prepro… brier_… 0.0817 0.00434    10 formula      deci…     2
#> 6 formula_decisio… Prepro… roc_auc 0.951  0.00378    10 formula      deci…     2

The first metric of the metric set is used for ranking. Use rank_metric to change that.

Lots more available with workflow sets, like collect_metrics(), autoplot() methods, and more!
